Package Content

Yealink MCore Pro Mini-PC (Zoom Rooms pre-installed)

Yealink MCore Pro Mini-PC (Zoom Rooms pre-installed)

Yealink MTouch Plus Touch Panel

Yealink MTouch Plus Touch Panel

Yealink UVC86 Dual 4K Cameras

Yealink UVC86 Dual 4K Cameras

Yealink AVHub

Yealink AVHub

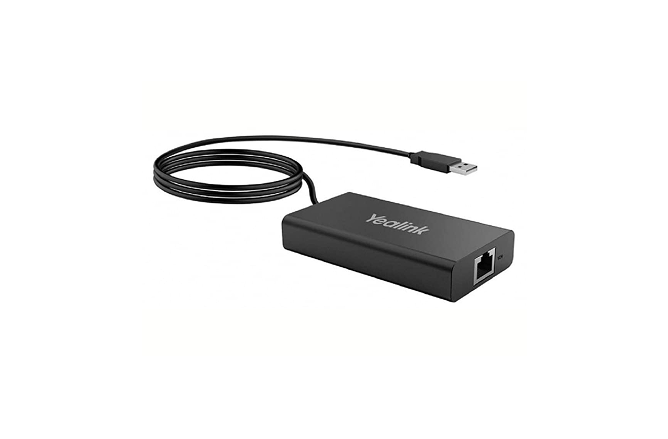

Yealink MVC-BYOD-Extender

Yealink MVC-BYOD-Extender

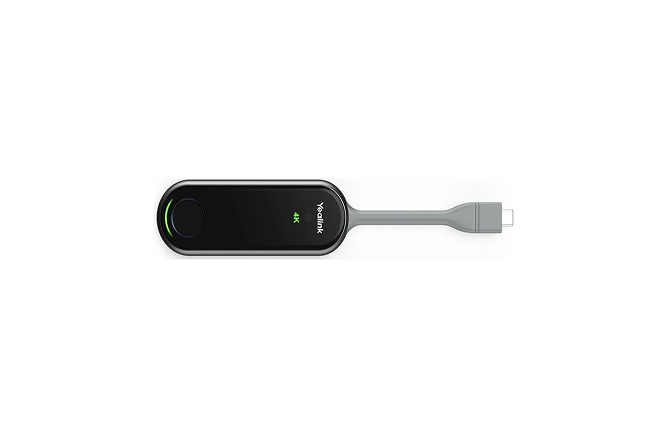

Yealink WPP30 Wireless Presentation Pods (x2)

Yealink WPP30 Wireless Presentation Pods (x2)

Yealink RoomSensor

Yealink RoomSensor

Features

Intelligent Multi-Camera IntelliFrame

Intelligent Multi-Camera IntelliFrame

Flexible Multi-Camera Setup

Flexible Multi-Camera Setup

Intuitive Control

Intuitive Control

Intelligent Tracking

Intelligent Tracking

Clear, Adaptable Audio

Clear, Adaptable Audio

Easy Sharing and BYOD

Easy Sharing and BYOD

Effortless Setup and Management

Effortless Setup and Management

Occupancy Detection

Occupancy Detection

Powerful Performance

Powerful Performance

Bridge the Distance and Bring Extra-Large Meeting Spaces Together with Ease

The Yealink ZVC S90 Zoom Rooms Kit unleashes the full potential of Zoom in extra-large conference rooms, training spaces, and auditorium-style settings.

Yealink ZVC S90 Zoom Rooms Kit

Package Content

  • MCore Pro, Gen-3 Mini-PC
  • MTouch Plus, Gen-3 touch panel
  • AVHub, audio and video processor
  • 2 x UVC86 USB PTZ camera
  • 2 x WPP30 wireless presentation pod
  • RoomSensor, meeting room sensor

Preload

  • Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Zoom Rooms App
  • Yeallink RoomConnect
  • *Windows 11 will be supported in 23H2

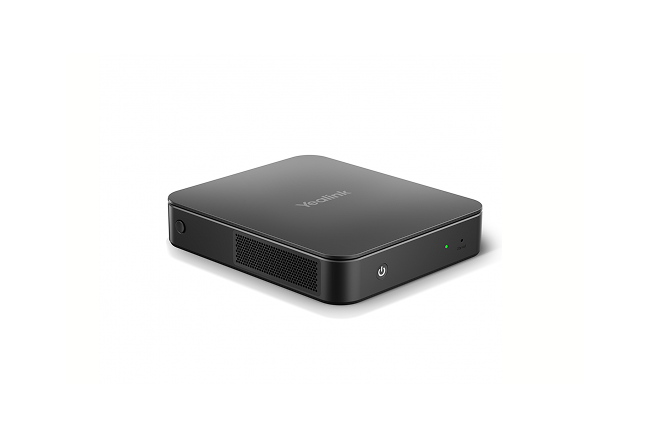

MCore Pro, Gen-3 Mini-PC

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

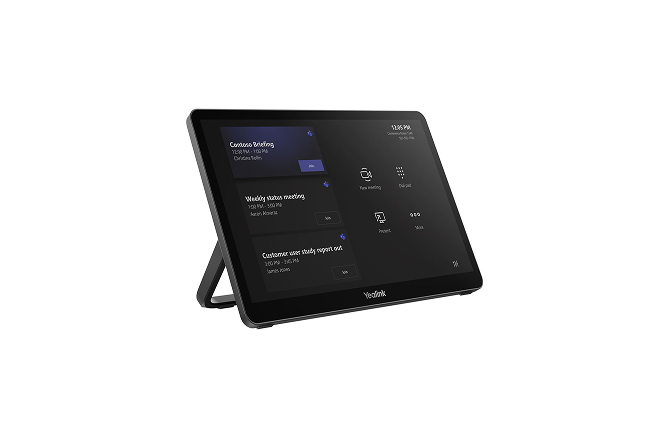

MTouch Plus

  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Angle between screen and desktop (30° ~ 70°)
  • Adjustable angle of support frame (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment
  • *This feature will be supported in future versions

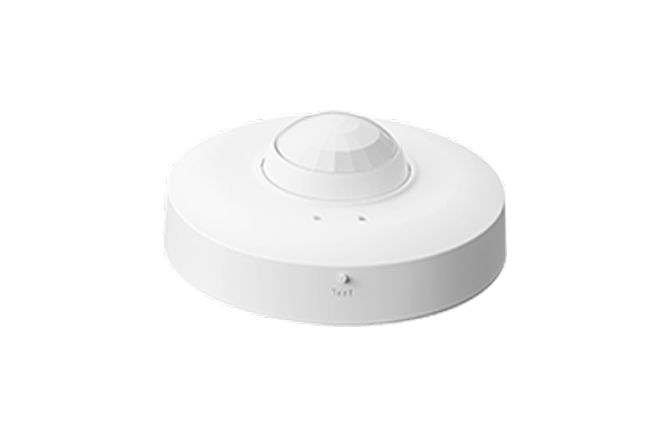

RoomSensor

  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4 year life

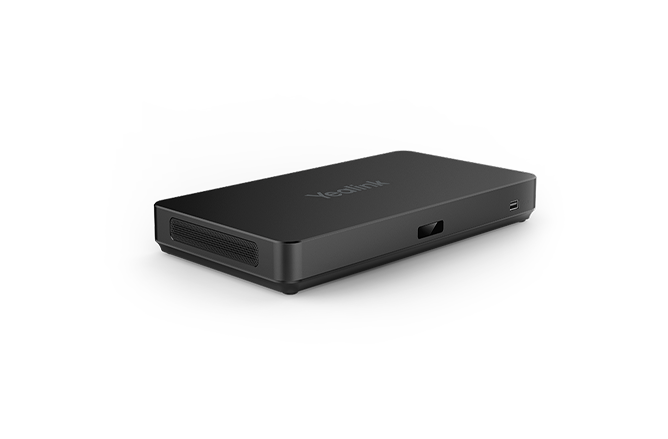

AVHub, audio and video processor

  • 2 x USB-A port
  • 1 x USB-B port
  • 1 x Codec port
  • 7 x Yealink VCH port(RJ-45)
  • 1 x RCA in/out interface
  • 1 x 6.3mm Line in interface
  • 1 x 6.3mm Line out interface
  • 1 x power interface
  • Dividable and merging meeting rooms are supported
  • Support intelligent multi-speaker tracking
  • Support wireless BYOD*

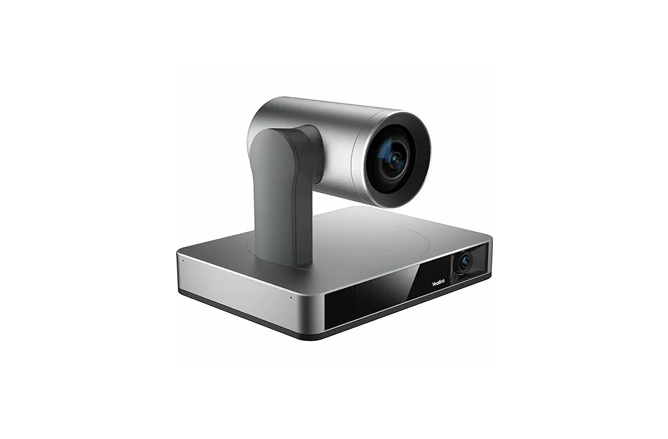

UVC86 USB PTZ Camera

  • 4K Sensor
  • 20.4 × HD zoom (12x optical, 1.7x digital)
  • Angle of view:
    -90° DFOV, 81° HFOV, 50° VFOV ( Telephoto lens)
    -120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
  • Auto-framing
  • Speaker tracking
  • Presenter tracking, support area trigger and gesture control
  • Multi-focus
  • Picture-in-picture
  • Up to 9 preset positions can be set
  • Horizontal rotation: 200°
  • Vertical rotation: 130°
  • 1 x HDMI output
  • 1 x Yealink microphone port(RJ-45)
  • 1 x USB 3.0 Type-B port
  • 1 x USB 2.0 Type-A Port
  • 1 x Power Port
  • 1 x Security Lock
  • 1 x Reset Hole

Package Features

  • N.W/CTN: 12.1 kg
  • G.W/CTN: 13.8 kg
  • Carton Meas: 935mm x 413mm x 312mm

The Yealink ZVC S90 is the ultimate video conferencing solution for expansive rooms, combining advanced AI-powered cameras and audio for a meeting experience that feels as natural as an in-person conversation. It is designed to ensure every voice is heard clearly and all participants are perfectly framed, fostering exceptional remote collaboration. With its easy setup and Zoom Rooms certification, the ZVC S90 creates a reliable and immersive meeting space for the modern workplace.
