Package Content

UVC86

UVC86

MSpeaker II

MSpeaker II

MCore Pro Mini-PC

MCore Pro Mini-PC

MTouch Plus

MTouch Plus

WPP30

WPP30

RCH40

RCH40

RoomSensor

RoomSensor

Features

4K UHD and 12x Optical Zoom

4K UHD and 12x Optical Zoom

Microphone Array

Microphone Array

11.6-inch Touch Console

11.6-inch Touch Console

Plug-and-Play Connectivity

Plug-and-Play Connectivity

11th Gen Intel i5 Processor

11th Gen Intel i5 Processor

Occupancy Detection

Occupancy Detection

Designed for Zoom-Based Professional Meeting Experience in Medium to Large Rooms

The Yealink ZVC860 is a next-level video conferencing solution engineered specifically for medium to large-room meetings. With the ZVC860, gain access to meeting rooms featuring high-quality audio/video, intelligent tracking, and seamless integration with Zoom for smoother interactions.

Yealink ZVC860 Zoom Rooms Kit

Package Content

  • MCore Pro, Gen-3 Mini-PC
  • MTouch Plus, Gen-3 touch panel
  • UVC86 USB PTZ camera
  • RoomSensor
  • MSpeaker II (optional)
  • VCM35 Array microphone (optional)
  • VCM36-W Wi-Fi wireless microphone (optional)
  • VCM38 Ceiling array microphone (optional)
  • CPW65 DECT wireless microphone (optional)

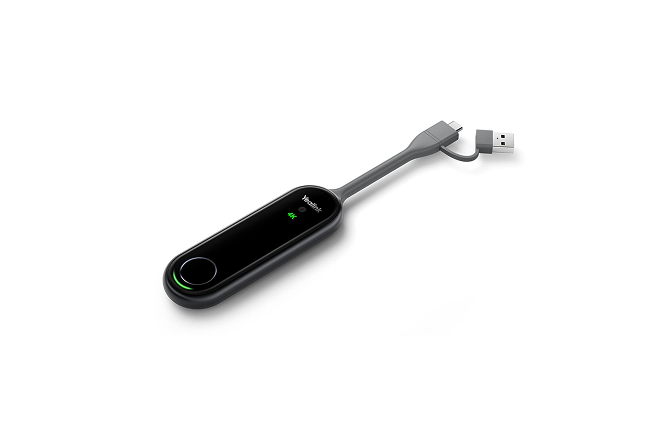

  • WPP30 wireless presentation pod (optional)

Preload

  • Windows 11 IoT Enterprise X64
  • Windows 11 IoT Enterprise License
  • Zoom Rooms App
  • Yeallink RoomConnect
    *Windows 11 will be supported in 23H2

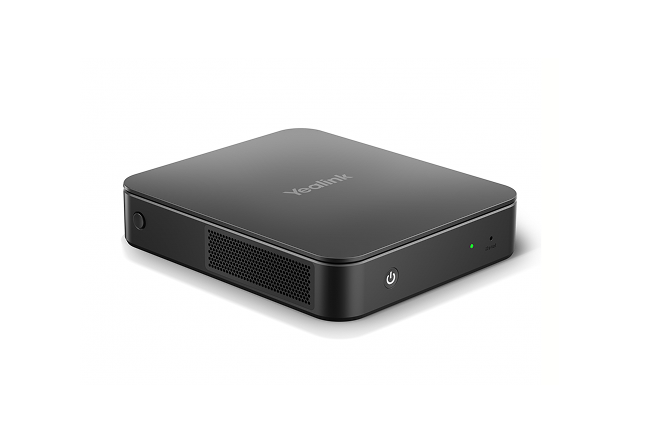

MCore Pro, Gen-3 Mini-PC

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

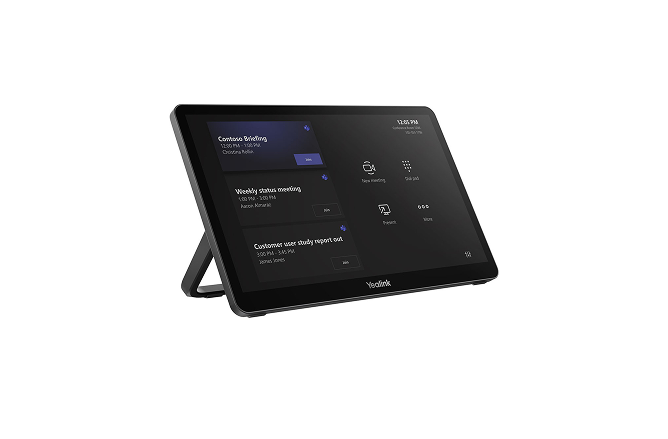

MTouch Plus

  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Angle between screen and desktop (30° ~ 70°)
  • Adjustable angle of support frame (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment
  • *This feature will be supported in future versions

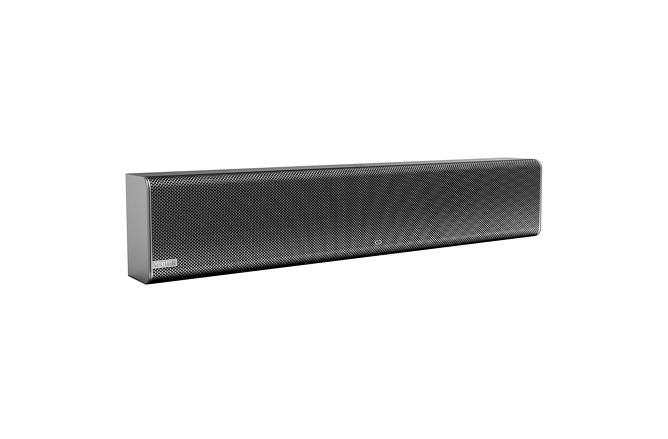

MSpeaker II(optional)

  • Frequency response: 106Hz-20 KHZ
  • Maximum Loud Pressure level: 88±3dB@8W / 1M
  • Sensitivity: 79±3dB@1W/1M
  • S/N: ≥70dB
  • 3.5mm linear input interface

UVC86 USB PTZ Camera

  • 4K Sensor
  • 20.4 × HD zoom (12x optical, 1.7x digital)
  • Angle of view:
    -90° DFOV, 81° HFOV, 50° VFOV ( Telephoto lens)
    -120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
  • Auto-framing
  • Speaker tracking
  • Presenter tracking, support area trigger and gesture control
  • Multi-focus
  • Picture-in-picture
  • Up to 9 preset positions can be set
  • Support wireless BYOD*
  • Horizontal rotation: 200°
  • Vertical rotation: 130°
  • 1 x HDMI output
  • 1 x Yealink microphone port (RJ-45)
  • 1 x USB 3.0 Type-B port
  • 1 x USB 2.0 Type-A port
  • 1 x Power port
  • 1 x Security lock
  • 1 x Reset hole

VCM35(optional)

  • Built-in three-microphone matrix
  • 360° omnidirectional pickup
  • Signal to noise ratio: 60dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 115dB@1KHz, THD<3%
  • Equivalent noise: -105dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency response: 100Hz-8KHz
  • 2m radius full duplex range
  • 6m pickup radius
  • Support star cascading
  • Two-color LED capacitive touch mute key

VCM38(optional)

  • Built-in six-mic matrix
  • 360° omnidirectional pickup
  • Signal-to-noise ratio: 65dB SPL@1KHz, A-weighted
  • Maximum sound pressure level: 110dB@1KHz, THD<3%
  • Equivalent Noise: -110dBFS(A)
  • Dynamic Range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency Response: 100Hz-8KHz
  • 2m radius full duplex range
  • 6m pickup radius
  • Up to 8 units can be cascaded
  • Two-color LED capacitive touch mute key

VCM36-W(optional)

  • Built-in three-wheat matrix
  • 360° omnidirectional pickup
  • Signal to Noise ratio: 60dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 115dB@1KHz, THD< 3%
  • Equivalent noise: -105dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency response: 100Hz-8KHz
  • 2-meter radius full duplex range
  • 6 m pickup radius
  • 2450mAh battery with wireless charging
  • 7 days standby time, up to 12 hours of continuous use
  • Two-color LED capacitive touch mute button

CPW65(optional)

  • 360° omnidirectional pickup
  • Signal-to-noise ratio: 65dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 110dB@1KHz, THD< 3%
  • Equivalent noise: -110dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -32dB±2
  • Frequency response: 100Hz-8KHz
  • 2-meter radius full duplex range
  • 6m pickup radius
  • Use Yealink WDD60 for pairing
  • Two-color LED capacitive touch mute button

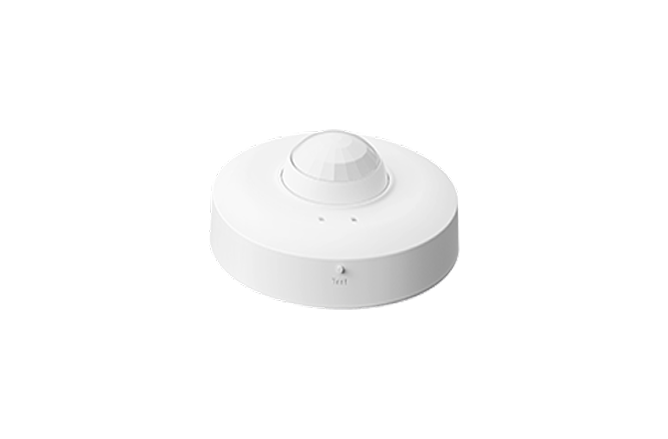

RoomSensor

  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4 year life

Package Features

  • N.W/CTN: 6.88 kg
  • G.W/CTN: 7.54 kg
  • Carton Meas: 420mm x 275mm x 387mm

Yealink ZVC860 provides an effective and streamlined video conferencing experience ideal for professional environments. With ZVC860, users can share various media and data effortlessly via WPP30, which can be directly plugged into devices for presentations. Clients can choose wired (VCM35, VCM38) or wireless (VCM36-W, CPW65) microphones for pickup, adaptive desktop positioning, ceiling deployment, and a variety of additional conference room configurations. Yealink Device Management Platform, or Cloud Service, enables simplified management, monitoring, configuration, and upgradation of the devices.
