Package Content

UVC86 Dual-Eye 4K Intelligent Tracking Camera

UVC86 Dual-Eye 4K Intelligent Tracking Camera

MCore Pro Mini-PC

MCore Pro Mini-PC

MTouch Plus Touch Console

MTouch Plus Touch Console

RoomSensor

RoomSensor

Features

Dual-Lens 4K Camera with 12x Optical Zoom

Dual-Lens 4K Camera with 12x Optical Zoom

Auto-Framing

Auto-Framing

Yealink Noise Proof Technology

Yealink Noise Proof Technology

Wireless and Wired  Content Sharing

Wireless and Wired Content Sharing

RoomSensor

RoomSensor

11.6-inch MTouch Plus Touchscreen

11.6-inch MTouch Plus Touchscreen

Powerful Performance

Powerful Performance

Flexible Audio

Flexible Audio

Easy Sharing

Easy Sharing

Transform Your Medium to Large Meeting Spaces with a Premium Zoom Experience.

The Yealink ZVC860 (Base-kit) delivers a next-generation Zoom Rooms experience. This comprehensive system is designed for medium to large conference rooms where superior video and audio quality are critical for effective collaboration.

Yealink ZVC860 (Base-kit) Zoom Rooms

Package Content

  • MCore Pro, Gen-3 Mini-PC
  • MTouch Plus, Gen-3 touch panel
  • UVC86 USB PTZ camera
  • RoomSensor
  • MSpeaker II (optional)
  • VCM35 Array microphone (optional)
  • VCM36-W Wi-Fi wireless microphone (optional)
  • VCM38 Ceiling array microphone (optional)
  • CPW65 DECT wireless microphone (optional)
  • WPP30 wireless presentation pod (optional)

Preload

  • Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Zoom Rooms App
  • Yealink RoomConnect
    *Windows 11 will be supported in 23H2

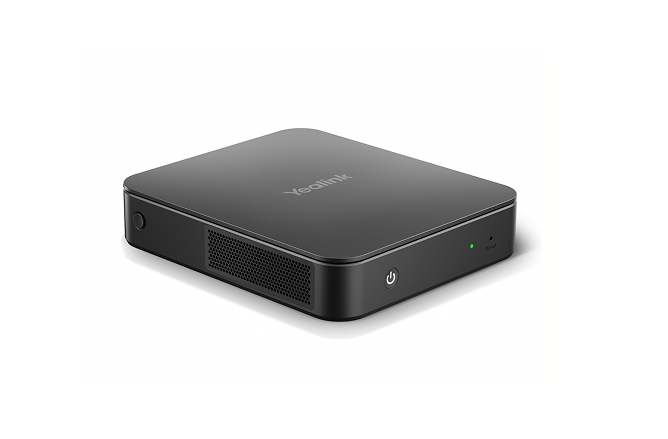

MCore Pro, Gen-3 Mini-PC

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

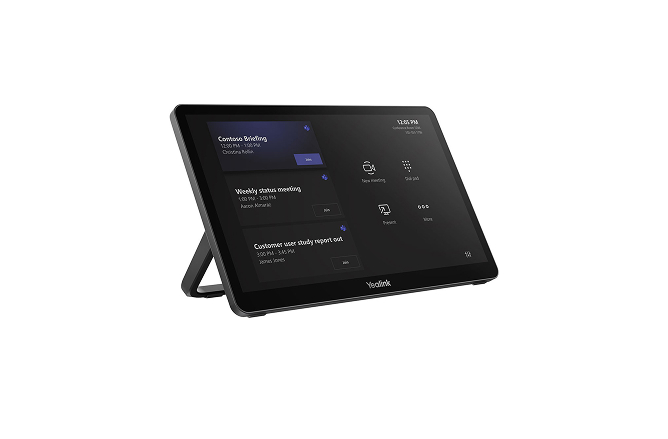

MTouch Plus

  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Angle between screen and desktop (30° ~ 70°)
  • Adjustable angle of support frame (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment
    *This feature will be supported in future versions

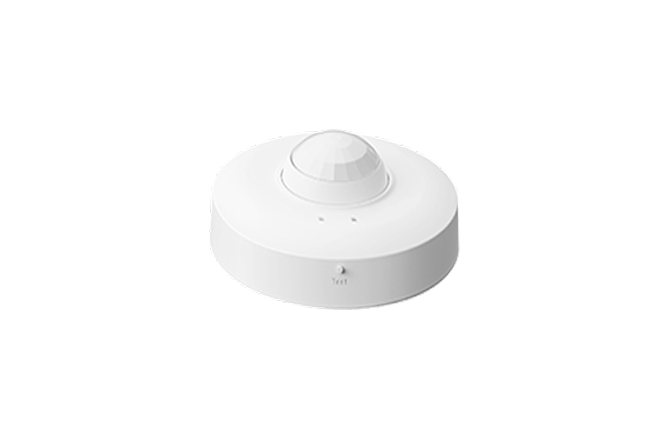

RoomSensor

  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4 year life

MSpeaker II(optional)

  • Frequency response: 106Hz-20 KHZ
  • Maximum Loud Pressure level: 88±3dB@8W / 1M
  • Sensitivity: 79±3dB@1W/1M
  • S/N: ≥70dB
  • 3.5mm linear input interface

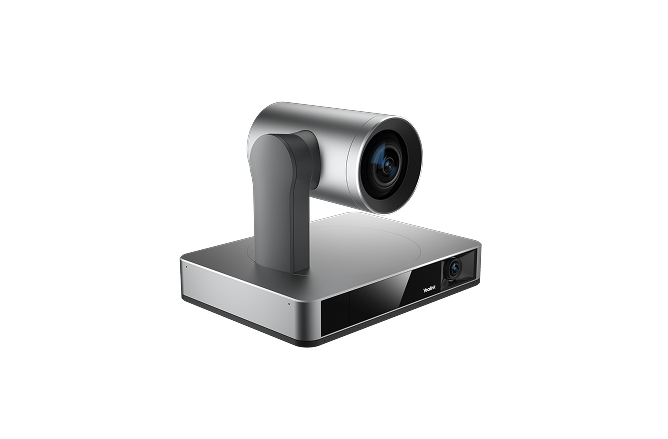

UVC86 USB PTZ Camera

  • 4K Sensor
  • 20.4 × HD zoom (12x optical, 1.7x digital)
  • Angle of view:
    -90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens)
    -120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
  • Auto-framing
  • Speaker tracking
  • Presenter tracking, support area trigger and gesture control
  • Multi-focus
  • Picture-in-picture
  • Up to 9 preset positions can be set
  • Support wireless BYOD*
  • Horizontal rotation: 200°
  • Vertical rotation: 130°
  • 1 x HDMI output
  • 1 x Yealink microphone port(RJ-45)
  • 1 x USB 3.0 Type-B port
  • 1 x USB 2.0 Type-A Port
  • 1 x Power Port
  • 1 x Security Lock
  • 1 x Reset Hole

VCM35(optional)

  • Built-in three-microphone matrix
  • 360° omnidirectional pickup
  • Signal to noise ratio: 60dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 115dB@1KHz, THD < 3%
  • Equivalent noise: -105dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency response: 100Hz-8KHz
  • 2m radius full duplex range
  • 6m pickup radius
  • Support star cascading
  • Two-color LED capacitive touch mute key

VCM38(optional)

  • Built-in six-mic matrix
  • 360° omnidirectional pickup
  • Signal-to-noise ratio: 65dB SPL@1KHz, A-weighted
  • Maximum sound pressure level: 110dB@1KHz, THD < 3%
  • Equivalent Noise: -110dBFS(A)
  • Dynamic Range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency Response: 100Hz-8KHz
  • 2m radius full duplex range
  • 6m pickup radius
  • Up to 8 units can be cascaded
  • Two-color LED capacitive touch mute key

VCM36-W(optional)

  • Built-in three-wheat matrix
  • 360° omnidirectional pickup
  • Signal to Noise ratio: 60dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 115dB@1KHz, THD< 3%
  • Equivalent noise: -105dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency response: 100Hz-8KHz
  • 2-meter radius full duplex range
  • 6 m pickup radius
  • 2450mAh battery with wireless charging
  • 7 days standby time, up to 12 hours of continuous use
  • Two-color LED capacitive touch mute button

CPW65(optional)

  • 360° omnidirectional pickup
  • Signal-to-noise ratio: 65dB SPL@1KHz,A-weighted
  • Loudest Pressure level: 110dB@1KHz, THD< 3%
  • Equivalent noise: -110dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -32db+/-2
  • Frequency response: 100Hz-8KHz
  • 2-meter radius full duplex range
  • 6 m pickup radius
  • Use Yealink WDD60 for pairing
  • Two-color LED capacitive touch mute button

Package Features

  • N.W/CTN: 6.88 kg
  • G.W/CTN: 7.54 kg
  • Carton Meas: 420mm x 275mm x 387mm

The Yealink ZVC860 (Base-kit) empowers engaging meetings through its outstanding video, audio, and innovative tracking features. Enjoy intelligent speaker tracking, automatic framing, and advanced AI-based noise reduction. The included touchscreen console and powerful mini-PC make Zoom Rooms setup incredibly easy, offering effortless control and smooth operation for users.
