Package Content

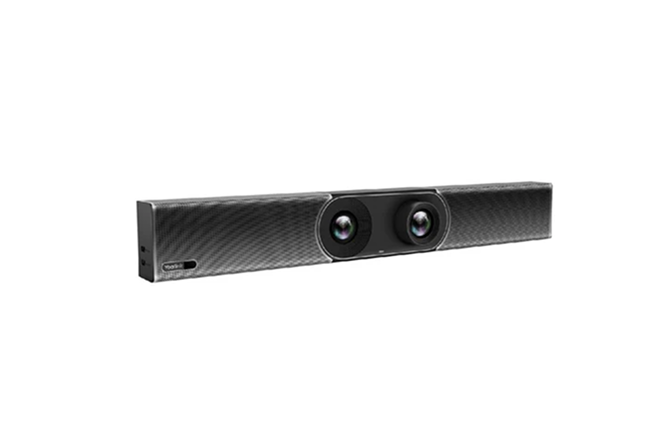

MeetingBar A30

MeetingBar A30

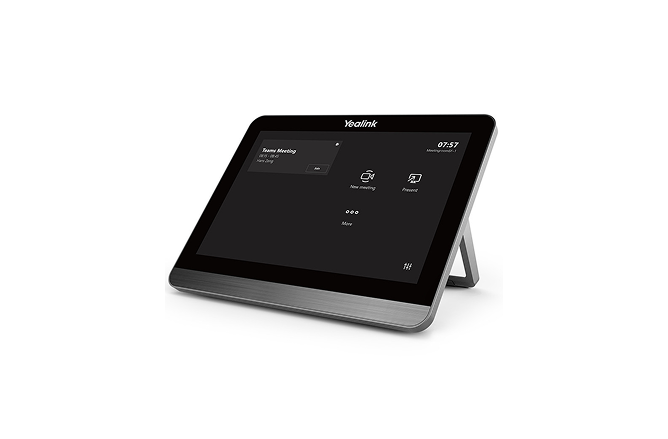

Yealink CTP18

Yealink CTP18

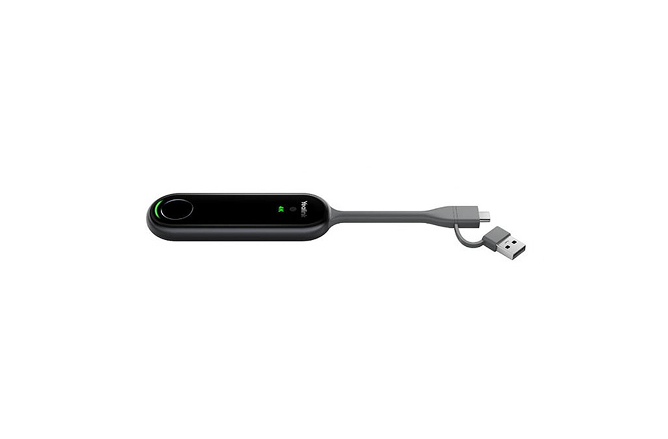

WPP30

WPP30

Features

8 MP Digital PTZ Camera/120° FOV

8 MP Digital PTZ Camera/120° FOV

Beamforming Microphone Array

Beamforming Microphone Array

Intuitive Operations

Intuitive Operations

Echo Cancellation

Echo Cancellation

Speaker Tracking

Speaker Tracking

Built-in Dual Band Wi-Fi

Built-in Dual Band Wi-Fi

All-in-One Design Upgrading Zoom Meeting Experience in Medium-Sized Rooms

Yealink MeetingBar A30 is the ideal choice for enhanced collaboration in medium-sized conference rooms. This comprehensive solution, with its all-encompassing design eliminates cable clutter and the need for complex setup.

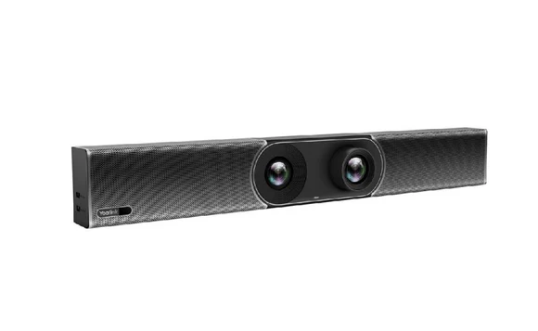

Yealink MeetingBar A30 Zoom Room

Dual Camera System

  • Wide Camera:
    8 MP Camera
    ield of view: 120°
    4x e-PTZ Camera
    120° DFOV, 112° HFOV, 79° VFOV
  • Telephoto Camera:
    8 MP Camera
    Field of view: 90°
    10x Hybrid Zoom (3.5x optical, 3x digital)
    Horizontal Rotation Angle: +25°/-25°
    Vertically Rotation Angle: +16°/-16°
    90° DFOV, 81° HFOV, 50° VFOV
  • Electric Privacy Shutter
  • Intelligence Features:
    Auto Framing (Frame and capture everyone in detail)
    Speaker Tracking (Switch automatically between active speaker)
    Picture in Picture (View speaker and group people simultaneously)
    Smart Gallery (Zoom only, display multiple video feeds from a single conference room)
  • 9x Camera presets

Audio

  • Built-in 8 MEMS microphone array with a voice pickup range of 6 meters
  • Support external mic
  • Speaker volume: 89db SPL@1W, 98db SPL@8W both +/-2db at 0.5m
  • Sensitivity: 89db SPL@1W, at 0.5m
  • Yealink Noise Proof Technology
  • Beamforming directed voice pickup technology
  • Full-duplex
  • AGC (Automatic Gain Control)
  • Echo cancellation
  • Built-in microphone frequency response: 100Hz to 8kHz
  • Speaker frequency response: 100Hz to 8kHz

Operating System

  • Android 10.0

Meeting Features

  • Calendar
  • One-click join
  • Meeting collaboration
    - Content sharing
    - Whiteboard
  • Meeting control:
    - Add participates
    - Hold/Resume
    - Camera On/Off
    - Mute/Unmute
    - Volume Up/Down
    - Hang up

Network and Security Features

  • Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
  • Built-in Bluetooth 4.2
  • IPv4 and IPv6, DHCP/static IP
  • HTTP/HTTPS web server
  • TLS 1.2/1.3, AES 256-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, LLDP
  • IEEE802.1X
    - EAP-MD5/EAP-TLS
    - PEAP-MSCHAPv2 - EAP-TTLS/EAP-MSCHAPv2
  • Network diagnosis: Ping, Trace route
  • Time and date synchronization using SNTP
  • Built-in certificate

Ports

  • 2 x HDMI output (CEC supported)
  • HDMI input (through the VCH51 Sharing Kit)
  • Motion sensor (Teams supported)
  • 1 x Line-in (3.5 mm)
  • 1 x Line-out (3.5 mm)
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x 10 M/100 M/1000 M Ethernet port
  • 1 x Yealink extension port (RJ-45)
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

Weight

  • A30-010:
    N.W/CTN: 4.75 kg
    G.W/CTN: 5.68 kg
  • A30-020:
    N.W/CTN: 7.05 kg
    G.W/CTN: 8.13 kg
  • A30-025:
    N.W/CTN: 7.20 kg
    G.W/CTN: 8.39 kg

Video Standard and Network Suitability

  • Video codecs: H.264 High profile, H.264 SVC, H.264

Other Physical Features

  • External Yealink Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
  • USB Output: 5 V 0.5 A
  • Power consumption (PSU):
    - Standby Power Consumption: 14.9 W
    - Average Power Consumption: 12.5 W
    - Peak Power Consumption: 18 W
  • Power Supply:
    - Input: 100-240V ~ 50/60Hz
    - Output: 48V 0.7A
  • Dimension (W.D.H): 700 mm x 98 mm x 121 mm
  • Operating humidity: 10 - 90%
  • Operating temperature: 0 - 40°C
  • Storage temperature: -30 to +70°C

MeetingBar A30 Package

  • Package contents:
    MeetingBar A30 endpoint
    3 m Ethernet cable
    2 x 1.8 m HDMI cable
    Mounting Bracket and Accessories
    Power adapter
    Quick Start Guide
    Controller (optional):
    CTP18 Touch Panel
    VCR20 Remote Control
    VCR11 Remote Control
  • Content sharing (optional):
    VCH51 Sharing Kit (HDMI/USB-C)
    WPP20 Wireless Presentation Pod
    WPP30 Wireless Presentation Pod

MeetingBar A30 + CTP18 Package

  • Carton Meas: 796 mm x 434 mm x 212 mm

The Yealink A30 Zoom is an intelligent all-in-one video collaboration bar designed for medium-sized meeting rooms. With its powerful dual-camera system, exceptional audio quality, intuitive interfaces, and seamless integration with Zoom, the MeetingBar A30 delivers smarter and more immersive video meetings. The electric lens cap ensures privacy by automatically covering the camera when not in use, and the WPP30 allows wireless content sharing, making meetings interactive and engaging.
