Package Content

MeetingBar A30

MeetingBar A30

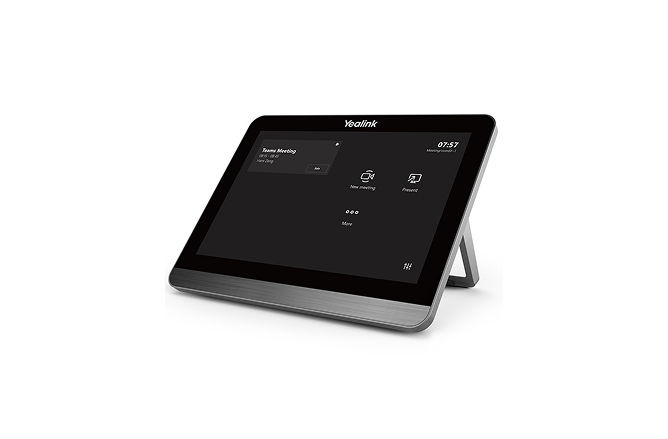

Yealink CTP18

Yealink CTP18

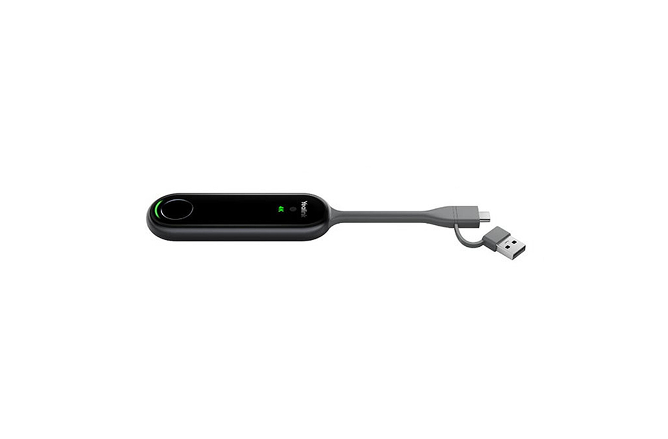

WPP30

WPP30

Features

8MP Dual-Camera

8MP Dual-Camera

8 MEMS Microphone Array

8 MEMS Microphone Array

Noise Cancellation

Noise Cancellation

Reverse Control

Reverse Control

Intuitive Touch Control

Intuitive Touch Control

Electric Cap Lens

Electric Cap Lens

Crafted to Transform Ordinary Medium-Sized Meeting Space into Efficient Collaboration Hubs

The Yealink MeetingBar A30 for Microsoft Teams is designed to enhance communication and collaboration in medium-sized meeting spaces. With its plug-and-play setup, exceptional audio-video quality, and AI-powered technology, this all-in-one device makes virtual meetings feel more like face-to-face interactions.

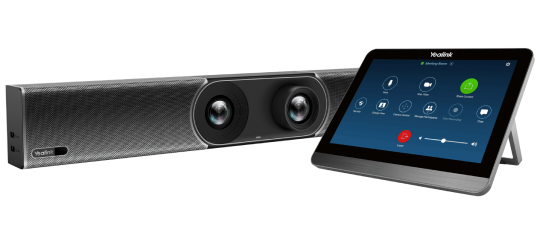

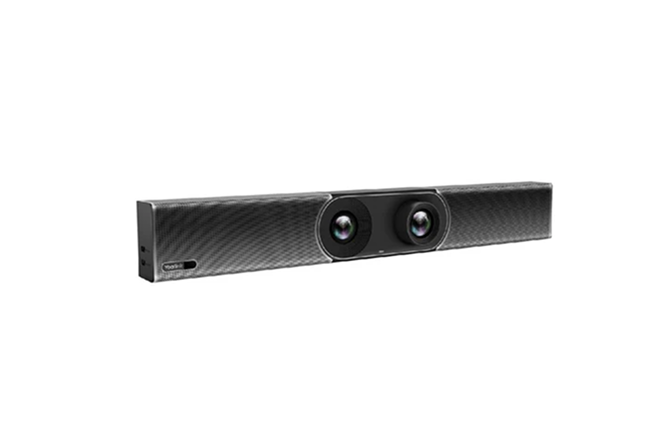

Yealink MeetingBar A30 Microsoft Teams

Dual Camera System

  • Wide Camera:
    - 8 MP Camera
    - Field of view: 120°
    - 4 x e-PTZ Camera
    - 120° DFOV, 112° HFOV, 79° VFOV
  • Telephoto Camera:
    - 8 MP Camera
    - Field of view: 90°
    - 10x Hybrid Zoom (3.5x optical, 3x digital)
    - Horizontal Rotation Angle: +25°/-25°
    - Vertically Rotation Angle: +16°/-16°
    - 90° DFOV, 81° HFOV, 50° VFOV
  • Electric Privacy Shutter
  • Intelligence Features:
    - Auto Framing (Frame and capture everyone in detail)
    - Speaker Tracking (Switch automatically between active speakers)
    - Picture in Picture (View speaker and group people simultaneously)
    - Smart Gallery (Zoom only, display multiple video feeds from a single conference room)
  • 9x Camera presets

Audio Features

  • Built-in 8 MEMS microphone array with a voice pickup range of 6 meters
  • Support external mic
  • Speaker volume: 89db SPL@1W, 98db SPL@8W both +/-2db at 0.5m
  • Sensitivity: 89db SPL@1W, at 0.5m
  • Yealink Noise Proof Technology
  • Beamforming directed voice pickup technology
  • Full-duplex
  • AGC (Automatic Gain Control)
  • Echo cancellation
  • Built-in microphone frequency response: 100Hz to 8kHz
  • Speaker frequency response: 100Hz to 8kHz

Operating System

  • Android 10.0

Meeting Features

  • Calendar
  • One-click join
  • Meeting collaboration
    - Content sharing
    - Whiteboard
  • Meeting control:
    - Add participant
    - Hold/Resume
    - Camera On/Off
    - Mute/Unmute
    - Volume Up/Down
    - Hang up

Video Standard and Network Suitability

  • Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features

  • Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
  • Built-in Bluetooth 4.2
  • IPv4 and IPv6, DHCP/static IP
  • HTTP/HTTPS web server
  • TLS 1.2/1.3, AES 256-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, LLDP
  • IEEE802.1X
    - EAP-MD5/EAP-TL
    - PEAP-MSCHAPv
    - EAP-TTLS/EAP-MSCHAPv
  • Network diagnosis: Ping, Trace route
  • Time and date synchronization using SNTP
  • Built-in certificate

Ports

  • 2 x HDMI output (CEC supported)
  • HDMI input (through the VCH51 Sharing Kit)
  • Motion sensor (Teams supported)
  • 1 x Line-in (3.5 mm)
  • 1 x Line-out (3.5 mm)
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x 10 M/100 M/1000 M Ethernet port
  • 1 x Yealink extension port (RJ-45)
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

Other Physical Features

  • External Yealink Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
  • USB Output: 5 V 0.5 A
  • Power consumption (PSU):
    - Standby Power Consumption: 14.9 W
    - Average Power Consumption: 12.5 W
    - Peak Power Consumption: 18 W
  • Power Supply:
    - Input: 100-240V ~ 50/60Hz
    - Output: 48V 0.7A
  • Dimension (W.D.H): 700 mm x 98 mm x 121 mm
  • Operating humidity: 10 - 90%
  • Operating temperature: 0 - 40°C
  • Storage temperature: -30 to +70°C


Weight

  • A30-010:
    - N.W/CTN: 4.75 kg
    - G.W/CTN: 5.68 kg
  • A30-020:
    - N.W/CTN: 7.05 kg
    - G.W/CTN: 8.13 kg
  • A30-025:
    - N.W/CTN: 7.20 kg
    - G.W/CTN: 8.39 kg

MeetingBar A30 Package

  • Package contents:
    - MeetingBar A30 endpoint
    - 3 m Ethernet cable
    - 2 x 1.8 m HDMI cable
    - Mounting Bracket and Accessories
    - Power adapter
    - Quick Start Guide
  • Controller (optional):
    - CTP18 Touch Panel
    - VCR20 Remote Control
    - VCR11 Remote Control
  • Content sharing(optional):
    - VCH51 Sharing Kit (HDMI/USB-C)
    - WPP20 Wireless Presentation Pod
    - WPP30 Wireless Presentation Pod
  • Carton Meas: 903 mm x 325 mm x 306 mm

MeetingBar A30 + CTP18 Package

  • Carton Meas: 796 mm x 434 mm x 212 mm

The Yealink MeetingBar A30 drives productive collaboration with its all-inclusive design, streamlining meetings and simplifying setup. The integration of a computing unit, camera, microphones, speaker, Bluetooth, and Wi-Fi all into one system aids in streamlined management, space-efficient placement, and minimal cable clutter. The Yealink A30 Teams facilitate productive collaboration in medium-sized meeting spaces, be it for in-person ideation sessions or establishing connections with distant colleagues.
