Package Content

MeetingBar A20

MeetingBar A20

WPP30

WPP30

Features

8x e-PTZ Camera

8x e-PTZ Camera

Full Duplex Technolog

Full Duplex Technolog

Auto Framing/Speaker Tracking

Auto Framing/Speaker Tracking

Plug-and-Play Set Up

Plug-and-Play Set Up

Content Sharing

Content Sharing

4K/30 FPS UHD Screen Casting

4K/30 FPS UHD Screen Casting

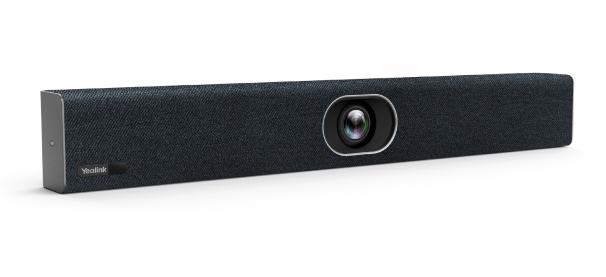

Yealink MeetingBar A20 for Premium Streamlined Collaboration in Small Rooms

Yealink MeetingBar A20, with its compact and portable design, effortlessly integrates into the existing infrastructure of small rooms. This all-in-one system can be connected wired or wirelessly to personal devices for a hassle-free and convenient video conferencing experience.

Yealink MeetingBar A20 BYOD

Camera

  • 20 MP Camera
  • 120° field of view
  • 8x e-PTZ camera
  • Electric privacy shutter
  • 120° DFOV, 111° HFOV, 73° VFOV
  • Intelligence Features
    - Auto Framing
    - Speaker Tracking
    - Picture in Picture
    - Multi-focus Framing
    - Smart Gallery (Zoom only)

Audio

  • Built-in 8 MEMS microphone array with a voice pickup range of 6 meters
  • Speaker volume: 89db SPL@1W, 95db SPL@4W both +/-2db at 0.5m
  • Sensitivity: 89db SPL@1W, at 0.5m
  • Yealink Noise Proof Technology
  • Full-duplex
  • AGC (Automatic Gain Control)
  • Echo cancellation
  • Built-in microphone frequency response: 100Hz to 8kHz
  • Speaker frequency response: 100Hz to 8kHz

Operating System

  • Android 10.0

Meeting Features

  • Calendar
  • One-click join
  • Meeting collaboration
    - Content sharing
    - Whiteboard
  • Meeting control:
    - Add participates
    - Hold/Resume
    - Camera On/Off
    - Mute/Unmute
    - Volume Up/Down
    - Hang up

Video Standard and Network Suitability

  • Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features

  • Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
  • Built-in Bluetooth 4.2
  • IPv4 and IPv6, DHCP/static IP
  • HTTP/HTTPS web server
  • TLS 1.2/1.3, AES 256-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, LLDP
  • IEEE802.1X
    - EAP-MD5/EAP-TLS
    - PEAP-MSCHAPv2
    - EAP-TTLS/EAP-MSCHAPv2
  • Network diagnosis: Ping, Trace route
  • Time and date synchronization using SNTP
  • Built-in certificate

Ports

  • 2 x HDMI output (CEC supported)
  • HDMI input (through the VCH51 Sharing Kit)
  • Motion sensor (Teams supported)
  • 1 x USB 2.0
  • 1 x 10 M/100 M/1000 M Ethernet port
  • 1 x Yealink VCH port (RJ-45)
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

Other Physical Features

  • Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
  • USB Output: 5 V image-20230322112748641 0.5 A
  • Power consumption (PSU):
    - Standby Power Consumption: 13.9 W
    - Average Power Consumption: 10.5 W
    - Peak Power Consumption: 14.2 W
  • Dimension (W.D.H): 600 mm x 68 mm x 82 mm
  • Operating humidity: 10 - 90%
  • Operating temperature: 0 - 40°C
  • Storage temperature: -30 to + 70°C

Weight

  • A20-010:
    - N.W/CTN: 2.89 kg
    - G.W/CTN: 3.48 kg
  • A20-020:
    - N.W/CTN: 4.93 kg
    - G.W/CTN: 5.65 kg
  • A20-025:
    - N.W/CTN: 5.39 kg
    - G.W/CTN: 6.11 kg

MeetingBar A20 Package

  • Package contents:
    - MeetingBar A20 endpoint
    - 3 m Ethernet cable
    - 2 x 1.8 m HDMI cable
    - Mounting Bracket and Accessories
    - TV-Clip Mount
    - Power adapter
    - Quick Start Guide
    - Controller (optional):
    CTP18 Touch Panel
    VCR20 Remote Control
    VCR11 Remote Control
    - Content sharing(optional):
    VCH51 Sharing Kit (HDMI/USB-C)
    WPP20 Wireless Presentation Pod
    WPP30 Wireless Presentation Pod
  • Carton Meas: 674 mm x 136 mm x 195 mm

MeetingBar A20 + CTP18 Package

  • Carton Meas: 685 mm x 290 mm x 397 mm

The Yealink MeetingBar A20 integrates a 20MP camera featuring 4K resolution, a microphone array, a high-quality speaker, Android OS, Wi-Fi, and Bluetooth, making it perfect for BYOD conferencing. Users can seamlessly switch from native to device mode or vice versa without activating any configuration. AI-powered technologies such as Auto Framing, Speaker Tracking, Picture-in-Picture, and Multi-Focus Framing eliminates the hassle of manual adjustment for focusing on a certain area or participant. Monitoring, control, management, troubleshooting and upgrade of the Yealink A20 MeetingBar can be done remotely via the Yealink Management Cloud Service.
