Package Content

MeetingBar A10

MeetingBar A10

Yealink CTP18

Yealink CTP18

WPP30

WPP30

Features

4K 8MP Camera

4K 8MP Camera

8-Element Microphone Array

8-Element Microphone Array

Noice Cancellation

Noice Cancellation

Zoom Smart Gallery

Zoom Smart Gallery

Content Sharing

Content Sharing

Intuitive Touch Panel

Intuitive Touch Panel

Streamlined Zoom Collaboration in Small to Medium-Sized Meeting Rooms

The Yealink MeetingBar provides a sophisticated outlook by seamlessly blending into small spaces and home offices. Upgrade to frustration-free meeting rooms with Yealink MeetingBar A10, which offers easy setup and control.

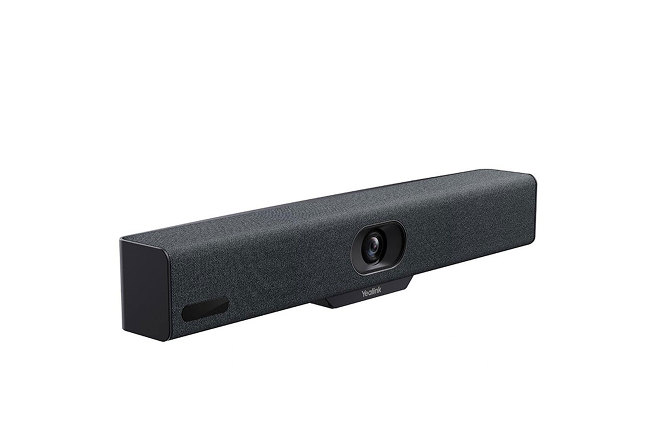

Yealink MeetingBar A10 for Zoom Rooms

Camera

  • 4K Camera
  • Resolution: 1080p30, 720p30
  • 120° DFoV
  • 105° HFoV
  • 4 x e-PTZ camera
  • Electric privacy shutter
  • Intelligence Features
    - Auto Framing
    - Speaker Tracking
    - Multi-focus Framing
    - Smart Gallery (Zoom Only)

Audio

  • Built-in 8 MEMS microphone array
  • Built-in 5 W high fidelity speaker
  • Advanced AI Noise Cancellation Algorithm
  • Excellent Full-duplex
  • AGC (Automatic Gain Control)
  • Incredible Echo cancellation Technology
  • Speaker volume: 88db SPL@1W, 93db SPL@3W both +/-2db at 0.5m
  • Sensitivity: 88db SPL@1W, at 0.5m
  • Built-in microphone frequency response: 100Hz to 8kHz
  • Speaker frequency response: 100Hz to 8kHz

Operating System

  • Android 11

Meeting Features

  • Calendar
  • One-click join
  • Meeting collaboration
    - Content sharing
  • Meeting control:
    - Add participates
    - Hold/Resume
    - Camera On/Off
    - Mute/Unmute
    - Volume Up/Down
    - Hang up

Video Standard and Network Suitability

  • Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features

  • Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
  • Built-in Bluetooth 4.2
  • IPv4 and IPv6, DHCP/static IP
  • HTTP/HTTPS web server
  • TLS 1.2/1.3, AES 256-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, LLDP
  • IEEE802.1X
    - EAP-MD5/EAP-TLS
    - PEAP-MSCHAPv2
    - EAP-TTLS/EAP-MSCHAPv2
  • Network diagnosis: Ping, Trace route
  • Time and date synchronization using SNTP
  • Built-in certificate

Ports

  • 1 x HDMI output (CEC supported)
  • 1 x USB 2.0
  • 1 x USB-C for content sharing
  • 1 x Line in/Line out
  • 1 x 10 M/100 M/1000 M Ethernet port
  • 1 x Yealink VCH port (RJ-45)
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

Other Physical Features

  • Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
  • USB Output: 5 V = 0.5 A
  • Power consumption (PSU):
    - Standby Power Consumption: 7.9 W
    - Average Power Consumption: 4.6 W
    - Peak Power Consumption: 8.1 W
  • Dimension (W.D.H): 380 mm x 57 mm x 57 mm
  • Operating humidity: 10 - 90%
  • Operating temperature: 0 - 40°C
  • Storage temperature: -30 to + 70°C

Weight

  • A10-010:
    - Qty: 4
    - N.W/CTN: 8.31 kg
    - G.W/CTN: 9.25 kg
  • A10-015:
    - Qty: 4
    - N.W/CTN: 8.72 kg
    - G.W/CTN: 9.45 kg
  • A10-025:
    - N.W/CTN: 3.63 kg
    - G.W/CTN: 4.28 kg

MeetingBar A10 Package

  • Package contents:
    - MeetingBar A10 endpoint
    - 3 m Ethernet cable
    - 1.8 m HDMI cable
    - Mounting Bracket and Accessories
    - Power adapter
    - Quick Start Guide
    - Controller Device(optional):

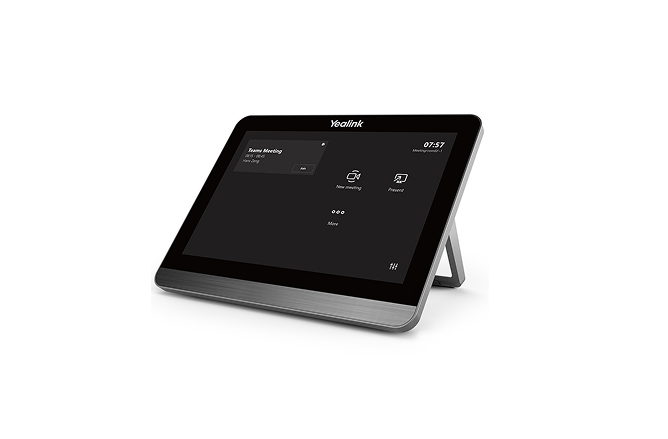

    - CTP18 Touch Console
    - VCR11 Remote Control
    - Sharing & BYOD Device(optional):

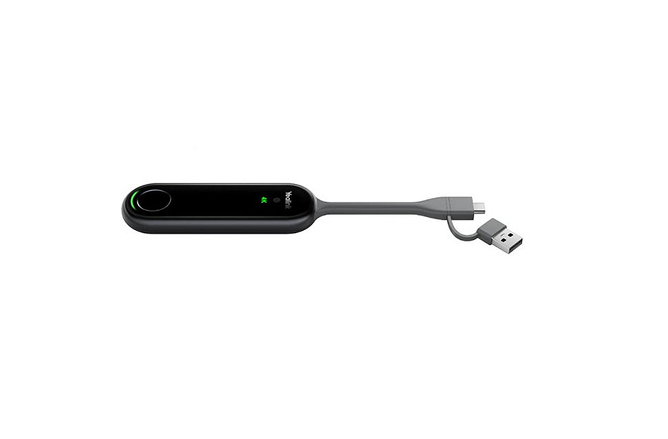

    - WPP30 Wireless Presentation Pod
    - Full-Featured USB-C Cable
  • Carton Meas: 447 mm x 165 mm x 150 mm

Device Management

  • Yealink Https Web Portal
  • Yealink Device Management Platform
  • Yealink Management Cloud Service
  • Teams Admin Center
  • Zoom Device Management

Yealink MeetingBar A10 is an all-encompassing video-conferencing solution that allows participants to connect and collaborate effectively and effortlessly during virtual meetings. With a compact design that is easy to set up, the user gets to connect easily by upgrading from device mode to zoom mode. The intuitive interfaces, integration with Zoom, auto framing/speaker tracking for enhanced visibility, and flexible deployment options to fit into diverse environments make Yealink MeetingBar A10 a reliable choice for users.
