Package Content

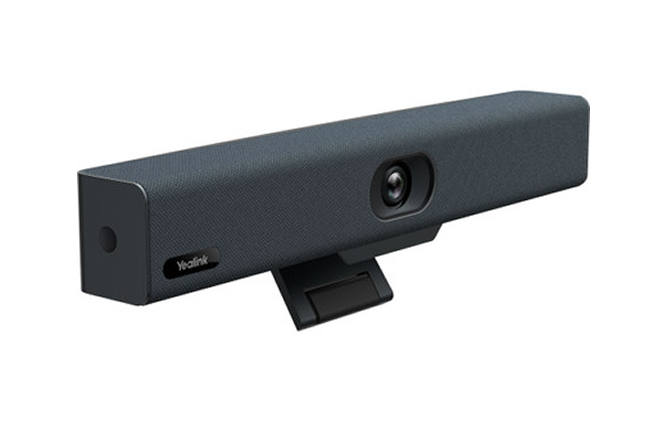

MeetingBar A10

MeetingBar A10

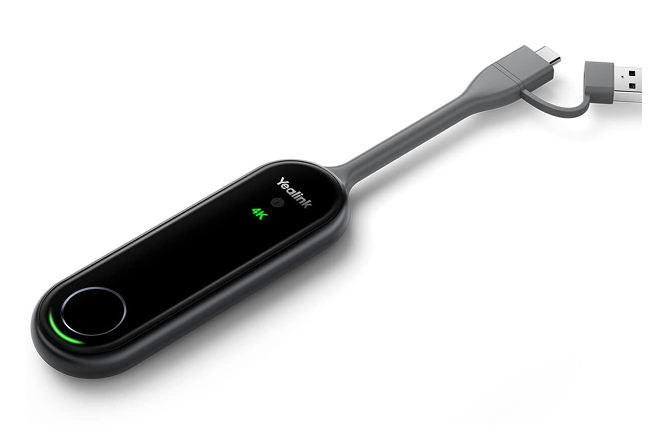

WPP30

WPP30

Features

4K 1080p30 Resolution

4K 1080p30 Resolution

Beamforming

Beamforming

Device Mode

Device Mode

Instant Content Sharing

Instant Content Sharing

Electric Privacy Shutter

Electric Privacy Shutter

Auto Framing

Auto Framing

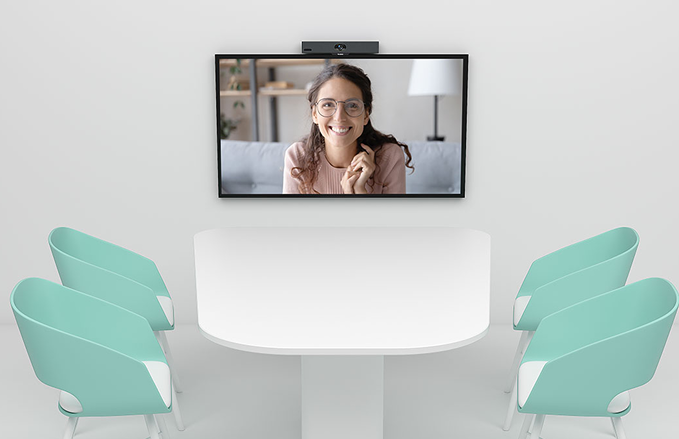

Yealink MeetingBar A10 for Immersive Remote Collaboration in Small Spaces and Home Offices

Yealink MeetingBar A10 transforms small spaces and home offices into a fully functional area exclusively for video conferencing. Optimized to offer both efficiency and flexibility, the MeetingBar A10 connects with personal devices for high-quality video meetings that can be set up quickly.

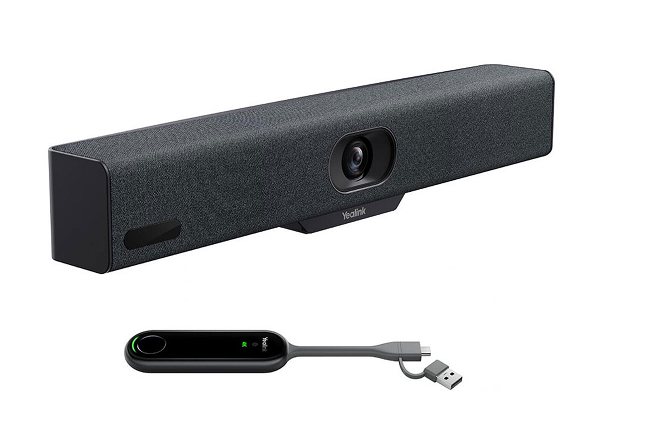

Yealink MeetingBar A10 BYOD

Camera

  • 4K Camera
  • Resolution: 1080p30, 720p30
  • 120° DFoV
  • 105° HFoV
  • 4 x e-PTZ camera
  • Electric privacy shutter
  • Intelligence Features
    - Auto Framing
    - Speaker Tracking
    - Multi-focus Framingv - Smart Gallery (Zoom Only)

Audio

  • Built-in 8 MEMS microphone array
  • Built-in 5 W high fidelity speaker
  • Advanced AI Noise Cancellation Algorithm
  • Excellent Full-duplex
  • AGC (Automatic Gain Control)
  • Incredible Echo cancellation Technology
  • Speaker volume: 88db SPL@1W, 93db SPL@3W both +/-2db at 0.5m
  • Sensitivity: 88db SPL@1W, at 0.5m
  • Built-in microphone frequency response: 100Hz to 8kHz
  • Speaker frequency response: 100Hz to 8kHz

Operating System

  • Android 11

Meeting Features

  • Calendar
  • One-click join
  • Meeting collaboration
    - Content sharing
  • Meeting control- Add participates
    - Hold/Resume
    - Camera On/Off
    - Mute/Unmute
    - Volume Up/Down
    - Hang up

Video Standard and Network Suitability

  • Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features

  • Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
  • Built-in Bluetooth 4.2
  • IPv4 and IPv6, DHCP/static IP
  • HTTP/HTTPS web server
  • TLS 1.2/1.3, AES 256-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, LLDP
  • IEEE802.1X
    - EAP-MD5/EAP-TLS
    - PEAP-MSCHAPv2
    - EAP-TTLS/EAP-MSCHAPv2
  • Network diagnosis: Ping, Trace route
  • Time and date synchronization using SNTP
  • Built-in certificate

Ports

  • 1 x HDMI output (CEC supported)
  • 1 x USB 2.0
  • 1 x USB-C for content sharing
  • 1 x Line in/Line out
  • 1 x 10 M/100 M/1000 M Ethernet port
  • 1 x Yealink VCH port (RJ-45)
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

Other Physical Features

  • Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
  • USB Output: 5 V = 0.5 A
  • Power consumption (PSU):
    - Standby Power Consumption: 7.9 W
    - Average Power Consumption: 4.6 W
    - Peak Power Consumption: 8.1 W
  • Dimension (W.D.H): 380 mm x 57 mm x 57 mm
  • Operating humidity: 10 - 90%
  • Operating temperature: 0 - 40°C
  • Storage temperature: -30 to + 70°C

Weight

  • A10-010:
    - Qty: 4
    - N.W/CTN: 8.31 kg
    - G.W/CTN: 9.25 kg
  • A10-015:
    - Qty: 4
    - N.W/CTN: 8.72 kg
    - G.W/CTN: 9.45 kg
  • A10-025:
    - N.W/CTN: 3.63 kg
    - G.W/CTN: 4.28 kg

MeetingBar A10 Package

  • Package contents:
    - MeetingBar A10 endpoint
    - 3 m Ethernet cable
    - 1.8 m HDMI cable
    - Mounting Bracket and Accessories
    - Power adapter
    - Quick Start Guide
    - Controller Device(optional):
    - CTP18 Touch Console
    - VCR11 Remote Control
    - Sharing & BYOD Device(optional):

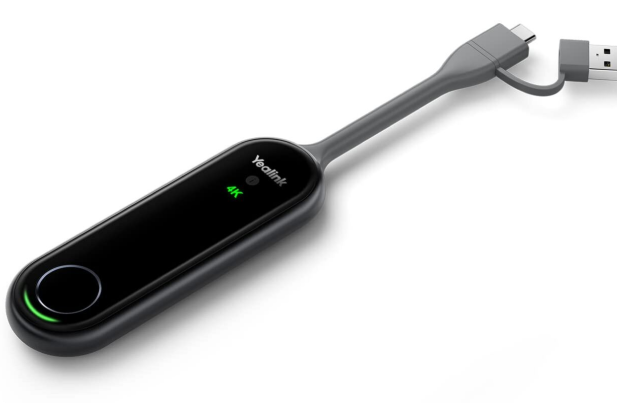

    - WPP30 Wireless Presentation Pod
    - Full-Featured USB-C Cable
  • Carton Meas: 447 mm x 165 mm x 150 mm

Device Management

  • Yealink Https Web Portal
  • Yealink Device Management Platform
  • Yealink Management Cloud Service
  • Teams Admin Center
  • Zoom Device Management

Yealink MeetingBar A10 mitigates the difference between virtual and in-person collaboration by facilitating dynamic and interactive meeting sessions. The compact design that measures only 380 mm x 57 mm x 57 makes it space-efficient and ideal for small spaces, and the USB ports offer flexibility for small room BYOD setups. The AI-powered speaker tracking follows the voice of the speaker to deliver a real-time close-up of them. The YMCS account enables the effortless control, monitoring, and upgrading of the Yealink MeetingBar A10 remotely.
