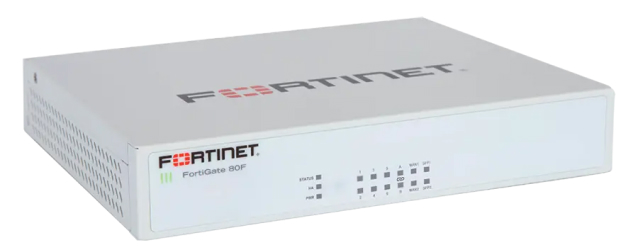

FortiGate 80F Series

Availability Status : In Stock

Ultimate Security for Enterprises with Distributed Networks

  • Brand : Fortinet
  • SKU : FG-80F, FG-80F-POE, FG-80F-Bypass, FG-81F, FG-81F-POE, FG-80F-DSL, FWF-81F-2R-POE, FWF-81F-2R-3G4G-P
  • Model:
    FortiGate 80F FortiGate 81F FortiGate 80F-Bypass FortiGate 80F-POE FortiGate 81F-POE FortiGate 80F-DSL FortiWiFi 80F-2R FortiWiFi 81F-2R FortiWiFi 81F-2R-POE FortiWiFi-80F-2R-3G4G-DSL FortiWiFi-81F-2R
  • Form Factor : Desktop/Wall Mount/Rack Tray

Tech Specs

  • IPS : 1.4 Gbps
  • NGFW : 1 Gbps
  • Threat Protection : 900 Mbps
  • Interfaces : Multiple GE RJ45 | Variants with Internal Storage | Wi-Fi Variants
Make an Enquiry Free Consultation
genuine products

Genuine
Products

Assured Quality

Assured
Quality

Product Traininig

Product
Traininig

Installation, Maintenance & Support

Installation, Maintenance & Support

SD-WAN Integrated Comprehensive Protection in SMBs and Branch Offices

FortiGate FortiWiFi 80F Series are advanced SD-WAN integrated firewalls that offer vigorous protection and scalable operations for small to mid-sized enterprises, offices, and branches. They are compact and fanless security solutions with WiFi-6 (802.11ax) capabilities that provide secure connectivity across the network.

FortiGate 80F

Fortinet FortiGate FortiWiFi 80F Series provides high-end security by identifying and preventing intrusions and malware attacks in both encrypted and unencrypted traffic with the backing of AI-powered FortiGuard Labs. The purpose-built security processors in the FortiGate 80F and the FortiGate 81F series ensure smooth performance and strengthen the protection of SSL-encrypted traffic with minimal delay.

With the support of FortiOS, Fortinet Security Fabric delivers advanced AI-ML powered technologies, ZTNA capabilities and inline advanced sandbox detection for comprehensive protection of network infrastructures. Across all WAN edges, reliable and secure connections are guaranteed by the SD-WAN-based proprietary ASIC architecture.

The networking features console with advanced layer 7 security and virtual domains (VDOMs) enable flexible performance and optimized usage of resources. Trustworthy security services are developed after proper testing and can be proven with third-party NSS Labs’ certifications. Streamlined management enables zero-touch integration with the security fabric of Fortinet.

System Performance and Capacity

  • IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) : 10 / 10 / 7 Gbps
  • Firewall Latency (64 byte, UDP) : 3.23 μs
  • Firewall Throughput (Packet per Second) : 10.5 Mpps
  • Concurrent Sessions (TCP) : 1.5 Million
  • New Sessions/Second (TCP) : 45 000
  • Firewall Policies : 5000
  • IPsec VPN Throughput (512 byte)1 : 6.5 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels : 200
  • Client-to-Gateway IPsec VPN Tunnels : 2500
  • SSL-VPN Throughput : 950 Mbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
  • SSL Inspection Throughput (IPS, avg HTTPS)3 : 715 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS)3 : 700
  • SSL Inspection Concurrent Session (IPS, avg HTTPS)3 : 100 000
  • Application Control Throughput (HTTP 64K)2 : 1.8 Gbps
  • CAPWAP Throughput (HTTP 64K) : 9 Gbps
  • Virtual Domains (Default / Maximum) : 10 / 10
  • Maximum Number of FortiSwitches Supported : 24
  • Maximum Number of FortiAPs (Total /Tunnel) : 96 / 48
  • Maximum Number of FortiTokens : 500
  • High Availability Configurations : Active-Active, Active-Passive, Clustering

System Performance — Enterprise Traffic Mix

  • IPS Throughput2 : 1.4 Gbps
  • NGFW Throughput2,4 : 1 Gbps
  • Threat Protection Throughput2,5 : 900 Mbps

Operating Environment and Certifications

  • Input Rating : 12V DC, 3A (dual redundancy optional - FG-80F/81F/80F-BYPASS) | +54V DC, 3A (dual redundancy optional - FG-80F/81F-POE )
  • Power Required (Redundancy Optional) : Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz
  • Maximum Current : 115VAC/0.4A, 230VAC/0.2A (FG-80F/81F/80F-BYPASS) | 115VAC/2.2A, 230VAC/1.1A (FG-80F-POE) | 115VAC/1.2A, 230VAC/0.6A(FG-81F-POE)
  • Total Available PoE Power Budget* : 96W(FG-80F/81F-POE)
  • Power Consumption (Average / Maximum) : 12.69 W / 15.51 W (FG-80F) | 13.5 W / 16.5 W (FG-81F) | 12.6 W / 15.4 W (FG-80F-BYPASS)|96 W / 118 W(FG-80F-POE) | 98 W / 137 W(FG-81F-POE)
  • Heat Dissipation : 52.55 BTU/h(FG-80F/80F-BYPASS), 56.30 BTU/h(FG-81F) | 402.26 BTU/h(FG-80F-POE) | 467.5 BTU/h(FG-81F-POE)
  • Operating Temperature : 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -31°F to 158°F (-35°C to 70°C)
  • Humidity : 10% to 90% non-condensing
  • Noise Level : Fanless 0 dBA(FG-80F/81F/80F-BYPASS) | 31.56 dBA(FG-80F/81F-POE)
  • Operating Altitude : Up to 7400 ft (2250 m)
  • Compliance : FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
  • Certifications : USGv6/IPv6

Dimensions and Power

  • Height x Width x Length (inches) : 1.6 x 8.5 x 7.0(FG-80F/81F/80F-BYPASS) | 2.4 x 8.5 x 7.0(FG-80F/81F-POE)
  • Height x Width x Length (mm) : 40 x 216 x 178(FG-80F/81F/80F-BYPASS) | 60 x 216 x 178(FG-80F/81F-POE)
  • Weight : 2.4 lbs (FG-80F/81F -1.1 kg)| 2.6 lbs (FG-80F-BYPASS - 1.2 kg), 3.1 lbs (FG-80F/81F(POE) -1.4 kg)
  • Form Factor (supports EIA/non-EIA standards) : Desktop/ Wall Mount/ Rack Tray

Interfaces and Modules

  • GE RJ45/SFP Shared Media Pairs : 2
  • GE RJ45 Internal Ports : 6(FG-80F/81F/80F-BYPASS)
  • GE RJ45 FortiLink Ports (Default) : 2(FG-80F/81F/80F-BYPASS)
  • GE RJ45 PoE/+ Ports : 6(FG-80F/81F-POE)
  • GE RJ45 PoE/+ FortiLink Ports (Default) : 2(FG-80F/81F-POE)
  • Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration) : Yes(FG-80F-BYPASS)
  • Wireless Interface : —
  • USB Ports 3.0 : 1
  • Console (RJ45) : 1
  • Internal Storage : 1x 128 GB SSD(FG-81F/81F-POE)
  • Trusted Platform Module (TPM) : Yes
  • Bluetooth Low Energy (BLE) : Yes
* Maximum loading on each PoE/+ port is 30 W (802.3at).

Hardware Specifications

  • GE RJ45/SFP Shared Media Pairs : 2
  • GE RJ45 Internal Ports : 6(FWF-81F-2R-POE)
  • GE RJ45 FortiLink Ports (Default) : 2(FWF-80F/81F(2R))
  • GE RJ45 PoE/+ Ports : 6(FWF-81F-2R-POE)
  • GE RJ45 PoE/+ FortiLink Ports (Default) : 2(FWF-81F-2R-POE)
  • Bypass GE RJ45 Port Pair (WAN1 and Port1, default configuration) : —
  • Wireless Interface : Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio
  • Antenna Ports (SMA) : 3
  • USB Ports 3.0 : 1
  • Console (RJ45) : 1
  • Internal Storage : 1x 128 GB SSD(FWF-81F-2R/81F-2R-POE)
  • Trusted Platform Module (TPM) : Yes
  • Bluetooth Low Energy (BLE) : Yes

Radio Specifications

  • Multiple User (MU) MIMO : 2x2
  • Maximum Wi-Fi Speeds : 574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz
  • Maximum Tx Power : 23 dBm @ 2.4 GHz, 22 dBm @ 5 GHz
  • Antenna Gain : 4.5dBi @ 2.4GHz, 5.5dBi @ 5GHz

System Performance — Enterprise Traffic Mix

  • IPS Throughput2 : 1.4 Gbps
  • NGFW Throughput2,4 : 1 Gbps
  • Threat Protection Throughput2,5 : 900 Mbps

Dimensions and Power

  • Height x Width x Length (inches) : 2.4 x 8.5 x 7.0
  • Height x Width x Length (mm) : 60 x 216 x 178
  • Weight : 3.3 lbs (1.5 kg)
  • Form Factor : Desktop/ Wall Mount/ Rack Tray

System Performance

  • Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 10 / 10 / 7 Gbps
  • Firewall Latency (64 byte UDP packets) : 3.23 μs
  • Firewall Throughput (Packets Per Second) : 10.5 Mpps
  • Concurrent Sessions (TCP) : 1.5 Million
  • New Sessions/Second (TCP) : 45,000
  • Firewall Policies : 5000
  • IPsec VPN Throughput (512 byte) : 6.5 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels : 200
  • Client-to-Gateway IPsec VPN Tunnels : 2500
  • SSL-VPN Throughput : 950 Mbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
  • SSL Inspection Throughput (IPS, avg. HTTPS) : 715 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS) : 700
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 100,000
  • Application Control Throughput (HTTP 64K) : 1.8 Gbps
  • CAPWAP Throughput (HTTP 64K) : 9 Gbps
  • Virtual Domains (Default / Maximum) : 10 / 10
  • Maximum Number of FortiSwitches Supported : 24
  • Maximum Number of FortiAPs (Total / Tunnel Mode) : 96 / 48
  • Maximum Number of FortiTokens : 500
  • High Availability Configurations : Active-Active, Active-Passive, Clustering

Operating Environment and Certifications

  • Input Rating : 12V DC, 5A (dual redundancy optional)
  • Power Required (Redundancy Optional) : Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz
  • Maximum Current : 115VAC/0.42A, 230VAC/0.21A(FWF 80F-2R) | 115VAC/0.42A, 230VAC/0.28A(FWF 81F-2R) | 115VAC/0.9A, 230VAC/0.6A(FWF 81F-2R-POE)
  • Total Available PoE Power Budget* : 96W(FWF 81F-2R-POE)
  • Power Consumption (Average / Maximum) : 22.9 W / 27.9 W(FWF 80F-2R) | 24.79 W / 30.29 W (FWF 81F-2R) | 107.4 W / 131.3 W(FWF 81F-2R-POE)
  • Heat Dissipation : 95.26 BTU/h(FWF 80F-2R) | 103.29 BTU/h(FWF 81F-2R) | 441.4 BTU/h(FWF 81F-2R-POE)
  • Operating Temperature : 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -31°F to 158°F (-35°C to 70°C)
  • Humidity : 10% to 90% non-condensing
  • Noise Level : 24.14 dBA(FWF-80F/81F(2R)) | 31.56 dBA(FWF-81F-2R-POE)
  • Operating Altitude : Up to 7400 ft (2250 m)
  • Compliance : FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
  • Certifications : USGv6/IPv6
* Maximum loading on each PoE/+ port is 30 W (802.3at).

Interfaces and Modules

  • GE RJ45/SFP Shared Media Pairs : 2
  • GE RJ45 Internal Ports : 6(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL)
  • GE RJ45 FortiLink Ports (Default) : 2 (FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL)
  • GE RJ45 POE/+ Ports : 6(FWF-81F-2R-3G4G-POE)
  • GE RJ45 POE/+ FortiLink Ports (Default) : 2(FWF-81F-2R-3G4G-POE)
  • DSL RJ11 Port : 1(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL)
  • Cellular Modem : 3G4G / LTE (FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Wireless Interface : Single Radio (2.4GHz/5GHz), 802.11a/b/g/n/ac-W2 Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio(FWF-80F-2R-3G4G-DSL) | Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio(FWF-81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Dual WiFi Radio (5 GHz, 2.4 GHz) : 802.11a/b/g/n/ac/ax + 1 Scanning Radio
  • Antenna Ports (SMA) : 6(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • USB Ports : 1
  • Console Port (RJ45) : 1
  • SIM Slots (Nano SIM) : 2(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Internal Storage : 128 GB(FWF-81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Trusted Platform Module (TPM) : Yes((FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE))
  • Bluetooth Low Energy (BLE) : Yes((FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE))

System Performance — Enterprise Traffic Mix

  • IPS Throughput2 : 1.4 Gbps
  • NGFW Throughput2,4 : 1 Gbps
  • Threat Protection Throughput2,5 : 900 Mbps

Operating Environment and Certifications

  • Operating Temperature : 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -31°F to 158°F (-35°C to 70°C)
  • Humidity : 10% to 90% non-condensing(FG-80F-DSL) | 20% to 90% non-condensing(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Noise Level : 24.14 dBA
  • Operating Altitude : Up to 7400 ft (2250 m)
  • Compliance : FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
  • Certifications : USGv6/IPv6

Radio Specifications

  • Multiple (MU) MIMO : N/A(FG-80F-DSL) |3x3(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Maximum Wi-Fi Speeds : N/A(FG-80F-DSL) | 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Maximum Tx Power : N/A(FG-80F-DSL) | 20 dBm(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Antenna Gain : N/A(FG-80F-DSL) | 3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)

3G4G Modem

  • Maximum Tx Power : N/A(FG-80F-DSL) | 20 dBm(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Regions Supported : N/A(FG-80F-DSL) | All Regions(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Modem Model : N/A(FG-80F-DSL) | Sierra Wireless EM7565 ((2 SIM Slots, Active/Passive)(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE))
  • LTE Category : N/A (FG-80F-DSL) |CAT-12(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • LTE Bands : N/A(FG-80F-DSL) | B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • UMTS/HSPA+ : N/A(FG-80F-DSL) | B1, B2, B4, B5, B6, B8, B9, B19(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • WCDMA : N/A(FG-80F-DSL)
  • CDMA 1xRTT/EV-DO Rev A : N/A (FG-80F-DSL)
  • GSM/GPRS/EDGE : N/A (FG-80F-DSL)
  • Module Certifications : N/A(FG-80F-DSL) | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • Diversity : N/A (FG-80F-DSL) |Yes(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • MIMO : N/A(FG-80F-DSL) | Yes(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)
  • GNSS Bias : N/A(FG-80F-DSL) | Yes(FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE)

xDSL Modem - Supported Mode

  • VDSL2 : Yes(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL) | N/A (FWF-81F-2R-3G4G-POE)
  • ADSL2 : Yes(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL) | N/A (FWF-81F-2R-3G4G-POE)
  • ADSL2+ : Yes(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL) | N/A (FWF-81F-2R-3G4G-POE)
  • G.DMT : Yes(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL) | N/A (FWF-81F-2R-3G4G-POE)
  • T1.413 : Yes(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL) | N/A (FWF-81F-2R-3G4G-POE)
  • G.Lite : Yes(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL) | N/A (FWF-81F-2R-3G4G-POE)

xDSL Modem - Supported Type

  • Annex A, B, I,J, M & L : Yes | N/A

System Performance

  • IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) : 10 / 10 / 7 Gbps
  • Firewall Latency (64 byte, UDP) : 3.23 μs
  • Firewall Throughput (Packet per Second) : 10.5 Mpps
  • Concurrent Sessions (TCP) : 1.5 Million
  • New Sessions/Second (TCP) : 45,000
  • Firewall Policies : 5,000
  • IPsec VPN Throughput (512 byte) : 6.5 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels : 200
  • Client-to-Gateway IPsec VPN Tunnels : 2,500
  • SSL-VPN Throughput : 950 Mbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
  • SSL Inspection Throughput (IPS, avg. HTTPS) : 715 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS) : 700
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 100,000
  • Application Control Throughput (HTTP 64K) : 1.8 Gbps
  • CAPWAP Throughput (HTTP 64K) : 9 Gbps
  • Virtual Domains (Default / Maximum) : 10 / 10
  • Maximum Number of FortiSwitches Supported : 24
  • Maximum Number of FortiAPs (Total / Tunnel) : 96 / 48
  • Maximum Number of FortiTokens : 500
  • High Availability Configurations : Active-Active, Active-Passive, Clustering

Dimensions and Power

  • Height x Width x Length (inches) : 2.4 x 8.5 x 7.0
  • Height x Width x Length (mm) : 60 x 216 x 178
  • Weight : 3.07 lbs (FG-80F-DSL-1.39 kg) | 3.5 lbs (FWF-80F-2R-3G4G-DSL/81F-2R-3G4G-DSL/81F-2R-3G4G-POE -1.6 kg)
  • Form Factor (supports EIA/non-EIA standards) : Desktop / Wallmount (optional)
  • Input Rating : 12V DC, 5A(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL) | 54V DC, 2.78A(FWF-81F-2R-3G4G-POE)
  • Power Required (Redundancy Optional) : Powered by up to two external DC power adapters (one adapter included), 100-240V AC, 50/60 Hz
  • Current (Maximum) : 115Vac/0.9A, 230Vac/0.6A
  • Total Available PoE Power Budget* : 96W(FWF-81F-2R-3G4G-POE)
  • Power Consumption (Average / Maximum) : 28.0 W / 31.6 W(FG-80F-DSL/80F-2R-3G4G-DSL/81F-2R-3G4G-DSL) | 109.3 W / 133.6 W(FWF-81F-2R-3G4G-POE)
  • Heat Dissipation : 108 BTU/h(FG-80F-DSL) | 117.0 BTU/h(FWF-80F-2R-3G4G-DSL) | 121.5 BTU/h(FWF-81F-2R-3G4G-DSL) | 455.6 BTU/h(FWF-81F-2R-3G4G-POE)
* Maximum loading on each PoE/+ port is 30 W (802.3at).

Frequently

Asked Questions (FAQs)

Related Products

Let’s

Get Connected!

Please provide your details below, and we will get in touch with you shortly.

0+

Years Experience

0+

Happy Clients

0+

Projects

0+

Employees

EXPLORE
