Unparalleled Protection without Compromising Performance Across All Edges

The FortiGate 6001F Series provides top-tier security solutions customized for enterprises and service providers. It empowers them to integrate a wide range of robust security measures such as zero trust network access (ZTNA), zero-day threat prevention, and more, safeguarding every edge regardless of the scale.

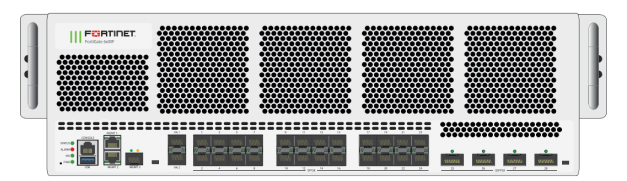

FortiGate 6001F

System Performance and Capacity

  • IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 1518: 120 / 40 / 239 Gbps 512: 120 / 40 / 238 Gbps 1518: 40.5 / 13.5 / 135 Gbps
  • IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP): 1518: 120 / 40 / 239 Gbps 512: 120 / 40 / 238 Gbps 1518: 40.5 / 13.5 / 135 Gbps
  • Firewall Latency (64 byte, UDP): 4.80 μs
  • Firewall Throughput (Packet per Second): 60.75 / 20.25 / 202.5 Mpps
  • Concurrent Sessions (TCP): 60 / 20 / 200 Million
  • New Sessions/Second (TCP): 900 000 / 300 000 / 3 Million
  • Firewall Policies: 200 000
  • IPsec VPN Throughput (512 byte): 48 / 16 / 160 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels: 16 000
  • Client-to-Gateway IPsec VPN Tunnels: 90 000
  • SSL-VPN Throughput: 9 Gbps on Master FPC
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 30,000
  • SSL Inspection Throughput (IPS, avg HTTPS) 3: 33 / 11 / 110 Gbps
  • SSL Inspection CPS (IPS, avg. HTTPS): 15 000 / 5000 / 50 000
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3: 5.4 / 1.8 / 18 Million
  • Application Control Throughput (HTTP 64K) 2 : 66 / 22 / 220 Gbps
  • CAPWAP Throughput (HTTP 64K): N/A
  • Virtual Domains (Default / Maximum): 10/500
  • Maximum Number of FortiSwitches Supported: 256
  • Maximum Number of FortiAPs (Total / Tunnel): N/A
  • Maximum Number of FortiTokens: 20,000
  • High Availability Configurations: Active-Active (FGSP), Active-Passive, Clustering

Operating Environment and Certifications

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -31°F to 158°F (-35°C to 70°C)
  • Humidity: 10% to 90% non-condensing
  • Noise Level: 57.43 dBA
  • Forced Airflow: Front to Back
  • Operating Altitude: Up to 10,000 ft (3048 m)
  • Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
  • Certifications: USGv6/IPv6

Dimensions and Power

  • Height x Width x Length (inches): 5.3 x 17.2 x 27.3
  • Height x Width x Length (mm): 133 x 437 x 694
  • Weight: 78.26 lbs (35.5 kg) 79.59 lbs (36.1 kg)
  • Form Factor(supports EIA/non-EIA standards): Rack Mount, 3 RU
  • AC Power Supply: 100–240V AC, 50/60 Hz
  • IPower Consumption (Average / Maximum): 1308 W / 1548 W 1328 W / 1568 W
  • AC Current (Maximum): 30A@100VAC, 20A@240VAC
  • DC Power Supply: N/A
  • DC Current (Maximum): N/A
  • Heat Dissipation: 5282 BTU/h / 5350 BTU/h
  • Power Supply Efficiency Rating: 80Plus Compliant
  • Redundant Power Supplies: 2+1 Redundant / 1+1 Redundant if using high line power Hot Swappable
  • Fan Trays: Hot Swappable

Interfaces and Modules

  • Hardware Accelerated 40/100 GE QSFP28 Slots: 4
  • Hardware Accelerated 1/10/25 GE SFP28 Slots: 24
  • Hardware Accelerated 10 GE SFP+ Slots: 3
  • GE RJ45 Management Ports: 2
  • USB Port: 1
  • Console Port: 1
  • Onboard Storage: 2x 1 TB NVMe / 2x 1 TB NVMe (for 6301F and 6501F only)
  • Included Transceivers: 2x SFP+ (SR 10 GE)

System Performance — Enterprise Traffic Mix

  • IPS Throughput: 51 / 17 / 170 Gbps
  • NGFW Throughput: 45 / 15 / 150 Gbps
  • Threat Protection Throughput: 30 / 10 / 100 Gbps

Fortinet is recognized as a leader in Gartner Magic Quadrant for network firewalls and WAN edge infrastructure. Fortinet’s next generation firewall FortiGate 6001F offer top-tier protection combined with high scalability, and performance optimization functionalities. FortiGate 6001F ensures hyperscale security to protect any edge at any scale. The advanced operation system, FortiOS provides integrated networking and security solutions. The patented SPU and vSPU processors accelerate threat detection and prevention with up to 520Gbps throughput rate.

Benefit from enterprise-grade security with FortiGuard Services powered by constantly upgraded AI and ML threat intelligence. FG 6001F offers enhanced protection against network-based and file-based threats through intrusion prevention, deep packet/SSL inspection, web/DNS filtering, anti-malware, application control etc., strengthening security of enterprises.

Dynamic and VXLAN segmentation for ensuring proactive protection across dispersed locations and multi-cloud environments. High port density and multiple high-speed interfaces facilitate flexible connectivity and optimized TCO. FortiManager, the unified management platform of Fortinet, provides intuitive interfaces for centralized management of FortiGate 6001F.
