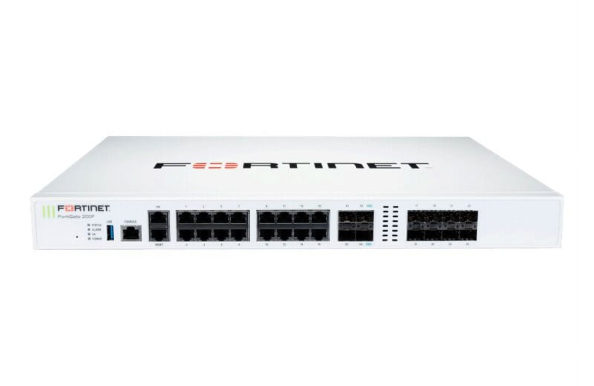

FortiGate 200F Series

Availability Status : In Stock

Converged Security and High-Performance with Next-Generation Firewalls

  • Brand : Fortinet
  • SKU : FG-200F and FG-201F
  • Model:
    FortiGate 200F Series FortiGate 201F Series
  • Form Factor : Ear Mount, 1 RU

Tech Specs

  • IPS : 5 Gbps
  • NGFW : 3.5 Gbps
  • Threat Protection : 3 Gbps
  • Interfaces : Multiple GE RJ45, GE SFP, and 10 GE SFP+ slots
Make an Enquiry Free Consultation
genuine products

Genuine
Products

Assured Quality

Assured
Quality

Product Traininig

Product
Traininig

Installation, Maintenance & Support

Installation, Maintenance & Support

FortiGate 200F Series for Comprehensive Security Across Distributed Networks in SMBs

Next-generation firewalls, crafted for SMBs with branch offices for easy configuration, network tracking, and managing security policies. FortiGate 200F and FortiGate 201F guarantee robust protection against intrusions and malware attacks through immediate identification and response mechanisms.

FortiGate 200F Series

System Performance and Capacity

  • IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) : 27 / 27 / 11 Gbps
  • Firewall Latency (64 byte, UDP) : 4.78 μs
  • Firewall Throughput (Packet per Second) : 16.5 Mpps
  • Concurrent Sessions (TCP) : 3 Million
  • New Sessions/Second (TCP) : 280,000
  • Firewall Policies : 10,000
  • IPsec VPN Throughput (512 byte) : 13 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels : 2,000
  • Client-to-Gateway IPsec VPN Tunnels : 16,000
  • SSL-VPN Throughput : 2 Gbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 500
  • SSL Inspection Throughput (IPS, avg. HTTPS) : 4 Gbps
  • SSL Inspection CPS (IPS, avg. HTTPS) : 3,500
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 300,000
  • Application Control Throughput (HTTP 64K) : 13 Gbps
  • CAPWAP Throughput (HTTP 64K) : 20 Gbps
  • Virtual Domains (Default / Maximum) : 10 / 10
  • Maximum Number of FortiSwitches Supported : 64
  • Maximum Number of FortiAPs (Total / Tunnel) : 256 / 128
  • Maximum Number of FortiTokens : 5,000
  • High Availability Configurations : Active-Active, Active-Passive, Clustering

System Performance — Enterprise Traffic Mix

  • IPS Throughput2 : 5 Gbps
  • NGFW Throughput2, 4 : 3.5 Gbps
  • Threat Protection Throughput2, 5 : 3 Gbps

Interfaces and Modules

  • GE RJ45 Ports : 16
  • GE RJ45 Management / HA : 1 / 1
  • GE SFP Slots : 8
  • 10 GE SFP+ FortiLink Slots (default) : 2
  • 10 GE SFP+ Slots : 2
  • USB Port : 1
  • Console Port : 1
  • Onboard Storage : 0(FORTIGATE 200F) | 1x 480 GB SSD(FORTIGATE 201F)
  • Trusted Platform Module (TPM) : Yes
  • Bluetooth Low Energy (BLE) : Yes
  • Included Transceivers : 0

Operating Environment and Certifications

  • Operating Temperature : 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -31°F to 158°F (-35°C to 70°C)
  • Humidity : 20% to 90% non-condensing
  • Noise Level : 49.9 dBA
  • Forced Airflow : Side to Back
  • Operating Altitude : Up to 10,000 ft (3048 m)
  • Compliance : FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
  • Certification : USGv6/IPv6

Dimensions and Power

  • Height x Width x Length (inches) : 1.73 x 17.01 x 13.47
  • Height x Width x Length (mm) : 44 x 432 x 342
  • Weight : 9.92 lbs (FORTIGATE 200F - 4.5 kg) | 10.14 lbs (FORTIGATE 201F - 4.6 kg)
  • Form Factor (supports EIA/non-EIA standards) : Ear Mount, 1 RU
  • AC Power Supply : 100–240V AC, 50/60 Hz
  • Power Consumption (Average / Maximum) : 101.92 W / 118.90 W (FORTIGATE 200F) | 104.52 W / 121.94 W(FORTIGATE 201F)
  • Current (Maximum) : 100V / 2A, 240V / 1.2A
  • Heat Dissipation : 405.70 BTU/h(FORTIGATE 200F) | 436.98 BTU/h(FORTIGATE 201F)
  • Redundant Power Supplies : Yes (Default dual non-swappable AC PSU for 1+1 Redundancy)
  • Power Supply Efficiency Rating : 80Plus Compliant

Fortinet is recognized as a Gartner Magic Quadrant leader for both network firewalls and WAN edge infrastructures. Fortinet’s FortiGate 200F and FortiGate 201F firewalls combine the latest threat intelligence with advanced threat prevention features for unparalleled protection against a wide range of malicious attacks. The built-in SD-WAN ensures better connectivity and optimized performance.

FG 200F and FG 201F can be used across IPSec and SSL-VPN protocols without compromising performance. Accelerated speed and performance capabilities offered by FortiOS facilitate rapid incident response and efficient prevention of cyber threats. Through deep packet/SSL inspection, the intrusion prevention system (IPS), powered by AI/ML support, detects and stops suspicious activities. Risky websites and advanced cyber-attacks like tunneling, infiltrations, C2 server IDs, and Domain Generation Algorithms (DGA) are identified immediately through DNS filtering. Zero-day attacks and emerging threats are also mitigated with zero-day threat prevention.

FortiGate 200F and FortiGate 201F feature multiple high-speed interfaces like GE RJ45 ports and 10 GE SFP+ slots that offer flexibility and scalability to seamlessly integrate into existing infrastructures and adapt to their changing network demands. Web-based GUI of FortiOS allows centralized management, real-time monitoring, and customization.
