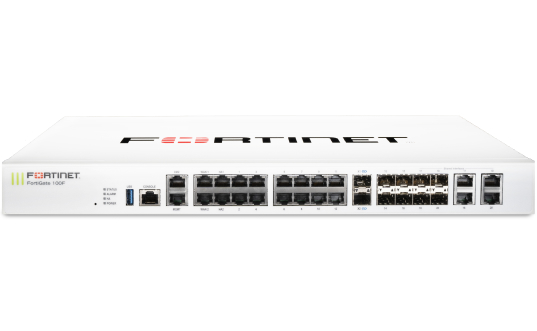

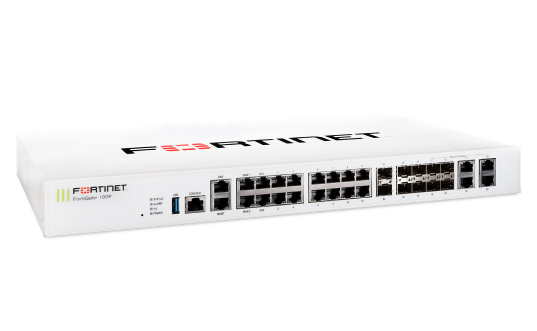

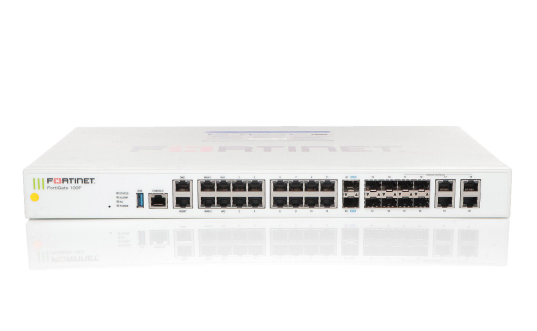

FortiGate 100F Series

Availability Status : In Stock

Advanced Threat Mitigation Solutions for Safe Networking

  • Brand : Fortinet
  • SKU : FG-100F and FG-101F
  • Model:
    FortiGate 100F FortiGate 101F
  • Form Factor : Rack Mount, 1 RU

Tech Specs

  • IPS : 2.6 Gbps
  • NGFW : 1.6 Gbps
  • Threat Protection : 1 Gbps
  • Interfaces : Multiple GE RJ45, GE SFP and 10 GE SFP+ slots
Make an Enquiry Free Consultation
genuine products

Genuine
Products

Assured Quality

Assured
Quality

Product Traininig

Product
Traininig

Installation, Maintenance & Support

Installation, Maintenance & Support

Fostering Secure Networking in Mid-Sized Businesses and Branch Offices

Fortinet FortiGate 100F and FortiGate 101F provide comprehensive protection and enhanced connectivity across networks for mid-sized businesses and branch offices. Unauthorized interventions and malware attacks can be detected in advance and mitigated immediately with their centralized management capabilities.

FortiGate 100F Series

System Performance and Capacity

  • IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) : 20 / 18 / 10 Gbps
  • Firewall Latency (64 byte, UDP) : 4.97 μs
  • Firewall Throughput (Packet per Second) : 15 Mpps
  • Concurrent Sessions (TCP) : 1.5 Million
  • New Sessions/Second (TCP) : 56 000
  • Firewall Policies : 10 000
  • IPsec VPN Throughput (512 byte) : 11.5 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels : 2000
  • Client-to-Gateway IPsec VPN Tunnels : 16 000
  • SSL-VPN Throughput : 1 Gbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 500
  • SSL Inspection Throughput (IPS, avg. HTTPS) : 1 Gbps
  • SSL Inspection CPS (IPS, avg. HTTPS) : 1800
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 135 000
  • Application Control Throughput (HTTP 64K) : 2.2 Gbps
  • CAPWAP Throughput (HTTP 64K) : 15 Gbps
  • Virtual Domains (Default / Maximum) : 10 / 10
  • Maximum Number of FortiSwitches Supported : 32
  • Maximum Number of FortiAPs (Total / Tunnel) : 128 / 64
  • Maximum Number of FortiTokens : 5000
  • High Availability Configurations : Active-Active, Active-Passive, Clustering

System Performance — Enterprise Traffic Mix

  • IPS Throughput : 2.6 Gbps
  • NGFW Throughput 2, 4 : 1.6 Gbps
  • Threat Protection Throughput 2, 5 : 1 Gbps

Interfaces and Modules

  • Hardware Accelerated GE RJ45 Ports : 12
  • Hardware Accelerated GE RJ45 Management / HA / DMZ Ports : 1 / 2 / 1
  • Hardware Accelerated GE SFP Slots : 4
  • Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) : 2
  • GE RJ45 WAN Ports : 2
  • GE RJ45 or SFP Shared Ports * : 4
  • USB Port : 1
  • Console Port : 1
  • Onboard Storage : 0(FORTIGATE 100F) | 1x 480 GB SSD(FORTIGATE 101F)
  • Included Transceivers : 0

Operating Environment and Certifications

  • Operating Temperature : 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -31°F to 158°F (-35°C to 70°C)
  • Humidity : 10% to 90% non-condensing
  • Noise Level : 40.4 dBA
  • Forced Airflow : Side to Back
  • Operating Altitude : Up to 10,000 ft (3048 m)
  • Compliance : FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
  • Certifications : USGv6/IPv6

Dimensions and Power

  • Height x Width x Length (inches) : 1.73 x 17 x 10
  • Height x Width x Length (mm) : 44 x 432 x 254
  • Weight : 7.25 lbs (FORTIGATE 100F - 3.29 kg) | 7.56 lbs (FORTIGATE 101F - 3.43 kg)
  • Form Factor (supports EIA/non-EIA standards) : Rack Mount, 1 RU
  • AC Power Supply : 100–240V AC, 50/60 Hz
  • Power Consumption (Average / Maximum) : 26.5 W / 29.5 W(FORTIGATE 100F) | 35.3 W / 39.1 W(FORTIGATE 101F)
  • Current (Maximum) : 100V / 1A, 240V / 0.5A
  • Heat Dissipation : 100.6 BTU/h(FORTIGATE 100F) | 121.13 BTU/h(FORTIGATE 101F)
  • Redundant Power Supplies : Yes (Default dual non-swappable AC PSU for 1+1 Redundancy)
  • Power Supply Efficiency Rating : 80Plus Compliant
* Latency based on Ultra Low Latency (ULL ports)

The security fabric of the FortiGate 100F and FortiGate 101F firewalls offers AI-driven protection, visibility, and automated operations across networks. It defends against network-based and file-based malware attacks or threats. Dynamic network tracking and optimized performance with built-in SD-WAN. The intrusion prevention system (IPS) powered by AI/ML models, through deep packet/SSL inspection, identifies, and prevents malicious interventions. The anti-malware defense with antivirus and file sandboxing offers comprehensive protection real-time with the support of threat intelligence from FortiGuard Labs.

Deep visibility into DNS traffic through DNS filtering allows blocking risky websites and protects against hidden attacks like tunneling, infiltrations, C2 server IDs, and Domain Generation Algorithms (DGA). With the data leak prevention system, monitoring, management, and protection of data are done on the network, in the cloud, as well as with users. Inline Cloud Access Security Broker (CASB) acts as an extra layer of security by protecting data in motion, at rest, and in the cloud. Zero-day threat prevention safeguards the system from zero-day attacks and evolving threats.

The custom Security Processing Unit (SPU) accelerates various threat protection procedures and ensures that the security solution does not hinder the smooth performance of the network or application. FG 100F and FG 101F are powered by FortiOS simplifies management by coordinating security services and networking operations.
